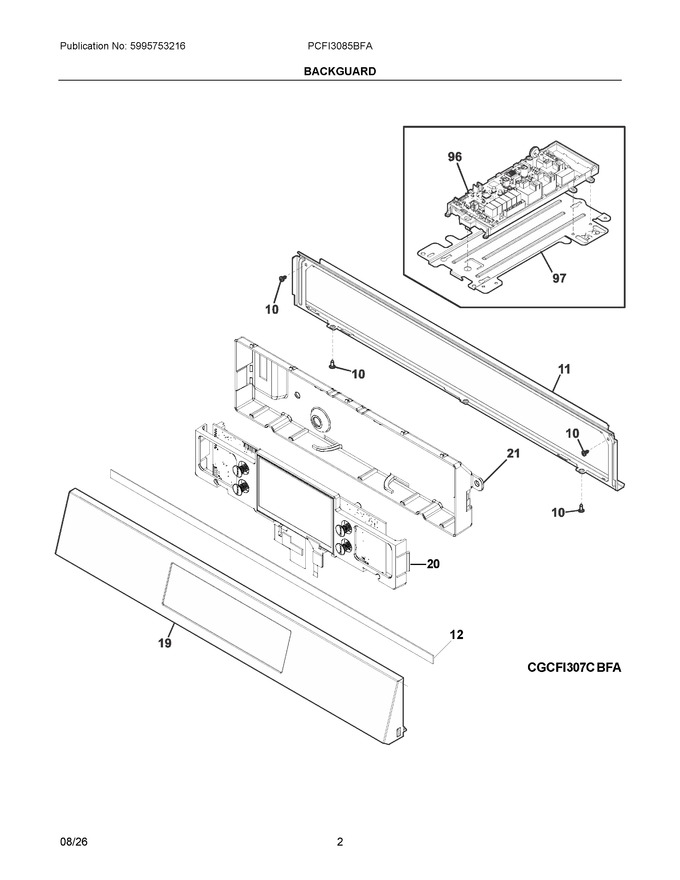

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
11	5304528295		Bracket, Support, Front Control			Immediately	$ 28.14
12	5304528554		Seal, Smoothtop			Immediately	$ 35.40
19	140246838035		Control Panel, Assembly, Stainless		Appelez-nous	-
20	140225820335		User Interface Board, Ui745i		Appelez-nous	-
21	5304533954		Housing, Control		Appelez-nous	-
96	140171068079		Pc Board, Assembly, Ovc			Immediately	$ 142.64
97	5304528373		Bracket, Ovc Board			Immediately	$ 24.59
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	349479702		Screw, Pt T20, 4 X 10, Black				$ 2.54
NI	5304529016		Harness, Wiring, Macs Panel, To Ui Board				$ 25.73
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.58
NI	5304536410		Standoff, Harness Clamp			Immediately	$ 2.54
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
