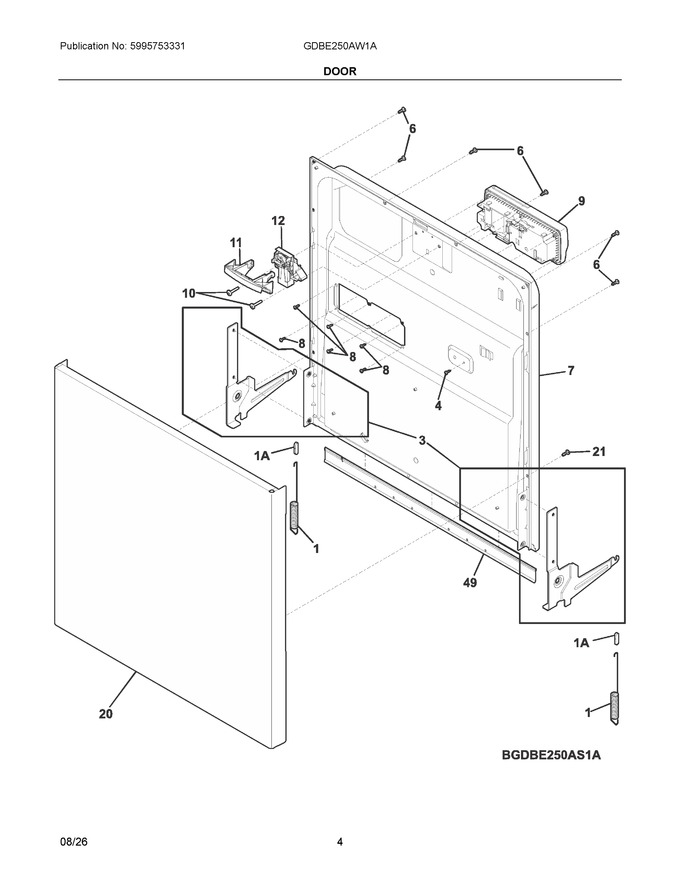

03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154430501 | Spring, Door, (2) |
|
Immediately | $ 40.34 | ||||
| 3 | 5304513274 | Counterbalance Arm, Kit, Lh & Rh, W/screws-nuts |
|
Immediately | $ 73.96 | ||||
| 4 | 808326801 | Screw, Hex Hd, 8-18 X .4, W/washer (Replaces: 154825401) |
|
$ 3.15 | |||||
| 6 | 154783101 | Screw, Plt, 8-10 |
|
$ 7.88 | |||||
| 7 | 140119106023 | Liner Assembly, Door, W/wiper&reinfor |
|
$ 66.69 | |||||
| 8 | 154294701 | Screw, #7 Plas .375, (6), Disp. Assy. |
|
$ 10.24 | |||||
| 9 | 5304532199 | Dispenser, Det/rinse Aid, W/level Ind. |
|
Immediately | $ 72.42 | ||||
| 10 | 154103702 | Screw, Latch Mtg, (2) |
|
$ 14.96 | |||||
| 11 | 5304535625 | Handle, Tug Latch, White |
|
Immediately | $ 10.87 | ||||
| 12 | 5304535641 | Latch Assembly, Door |
|
Immediately | $ 29.54 | ||||
| 20 | 154829001 | Door, Outer, White, W/barrier |
|
Immediately | $ 158.29 | ||||
| 21 | 154754701 | Screw, Truss Hd, 8-18 Type Ab |
|
$ 3.94 | |||||
| 49 | 5304500204 | Gasket, Door, Bottom |
|
Immediately | $ 33.10 | ||||
| 1A | 154325201 | Linkage, Door Spring, (2) |
|
Immediately | $ 30.30 | ||||
| NI | 154686401 | Bearing, Hinge Pin |
|
$ 11.81 | |||||
| NI | 154647101 | Hinge Pin, Arm Assy |
|
$ 15.75 | |||||
| NI | 154241101 | Retainer, Thermostat |
|
$ 4.02 | |||||
| NIA | 5304525214 | Shield, Dispenser Assy |
|
Immediately | $ 11.25 |
