Cabinet Parts


Door Parts


Unit Parts

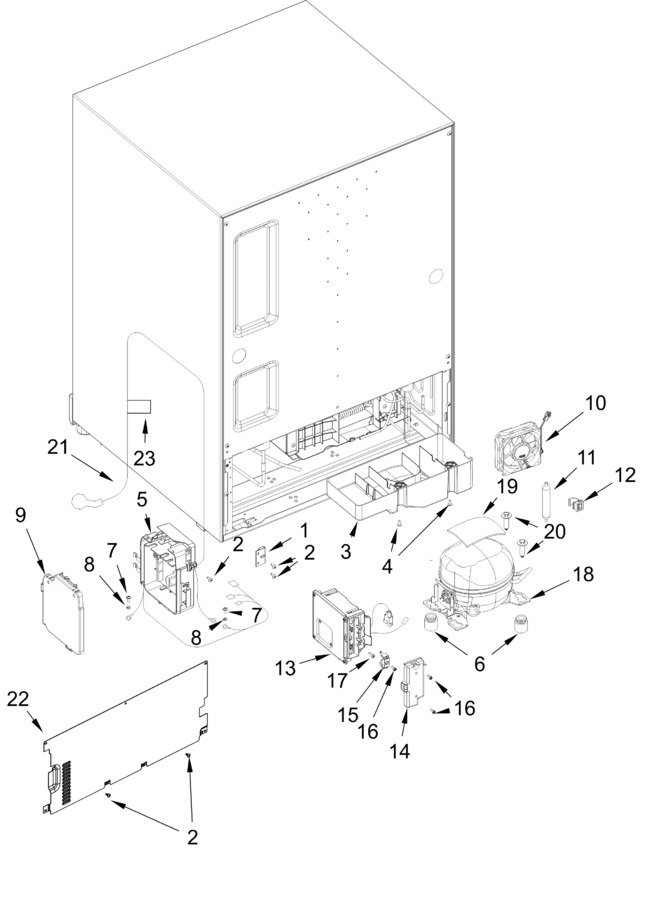

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11579515		Clamp, Cord   (Replaces: W11576947)		Appelez-nous	-
2	W11371097		Screw		Appelez-nous	-
3	W11360241		Water Pan, Evaporator		Appelez-nous	-
4	W11375763		Screw		Appelez-nous	-
5	W11837873		Main Pcb		Appelez-nous	-
6	W11360596		Mount, Compressor		Appelez-nous	-
7	4344826		Screw				$ 16.70
8	W11266077		Washer   (Replaces: W11265570)		Appelez-nous	-
9	W11313206		Cover Box, Pcb   (Replaces: W11265578)				$ 81.85
10	W11360536		Assembly, Fan Motor				$ 215.88
11	W10163273		Drier				$ 103.41
12	W11266075		Clamp		Appelez-nous	-
13	W11746146		Assembly, Ib Box   (Replaces: W11721645)				$ 441.08
14	W11774801		Cover, Side   (Replaces: W11770534)		Appelez-nous	-
15	W11774696		Stopper   (Replaces: W11723875)		Appelez-nous	-
16	W11755087		Screw   (Replaces: W11721659)		Appelez-nous	-
17	W11755086		Screw   (Replaces: W11721657)		Appelez-nous	-
18	W11721449		Compressor		Appelez-nous	-
19	W11596025		Sound Pad, Compressor   (Replaces: W11360595)				$ 38.27
20	W11375771		Bolt		Appelez-nous	-
21	W11774698		Cord, Power   (Replaces: W11740249)		Appelez-nous	-
22	W11568821		Panel, Cover		Appelez-nous	-
23	W11618463		Assembly, Power Cord			Immediately	$ 132.47
	ARI8476905DFD3F5BB7855417E74F4EB6BF		52 Grams (r600a)		Appelez-nous	-
	ARIA203FEA88A0C0545C484B4E1C20B771B		Refrigerant Charge		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
