SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner

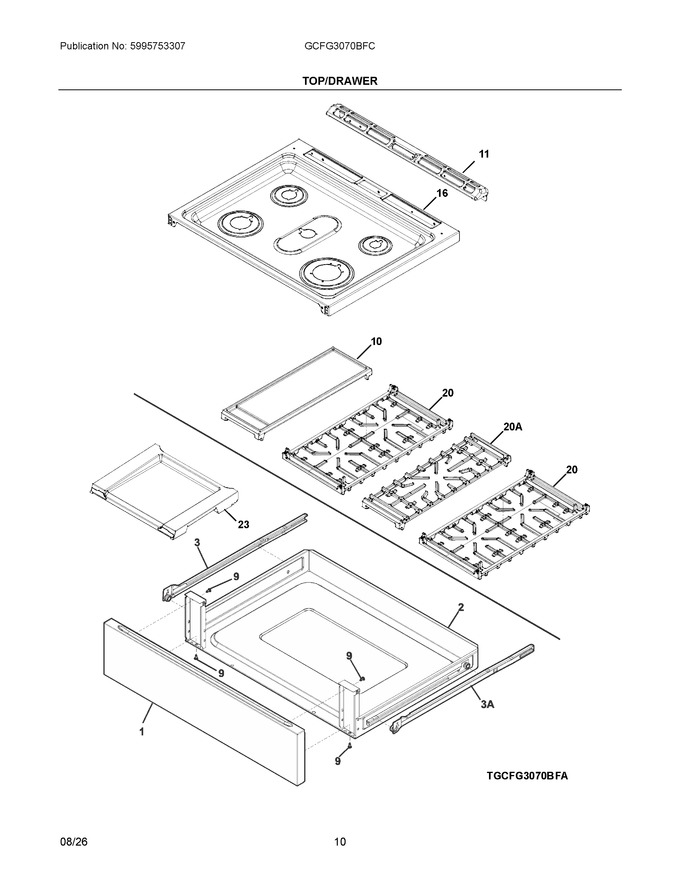

04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Schematic


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304528223		Panel, Drawer, Stainless				$ 125.30
2	5304528242		Drawer Assembly, Glides			Immediately	$ 110.58
3	5304526306		Glide, Drawer, Black, Lh Outer			Immediately	$ 23.71
9	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.58
10	5304533880		Griddle, Gallery				$ 158.68
11	5304534686		Trim-rear Vent Gas				$ 107.95
16	5304534675		Main Top, Assembly , Black				$ 193.04
20	5304535283		Grate, Burner, Side				$ 153.42
23	140288821022		Pizza Accessory Kit,metal Peel		Appelez-nous	-
20A	5304535284		Grate, Burner, Center			Immediately	$ 92.23
3A	5304526307		Glide, Drawer, Black, Rh Outer			Immediately	$ 23.71
NI	387854510		Screw, Din 7981, 4, 2 X 9, 5, (9)		Appelez-nous	-
NI	316089500		Screw, 10-16 X .486				$ 14.96
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
