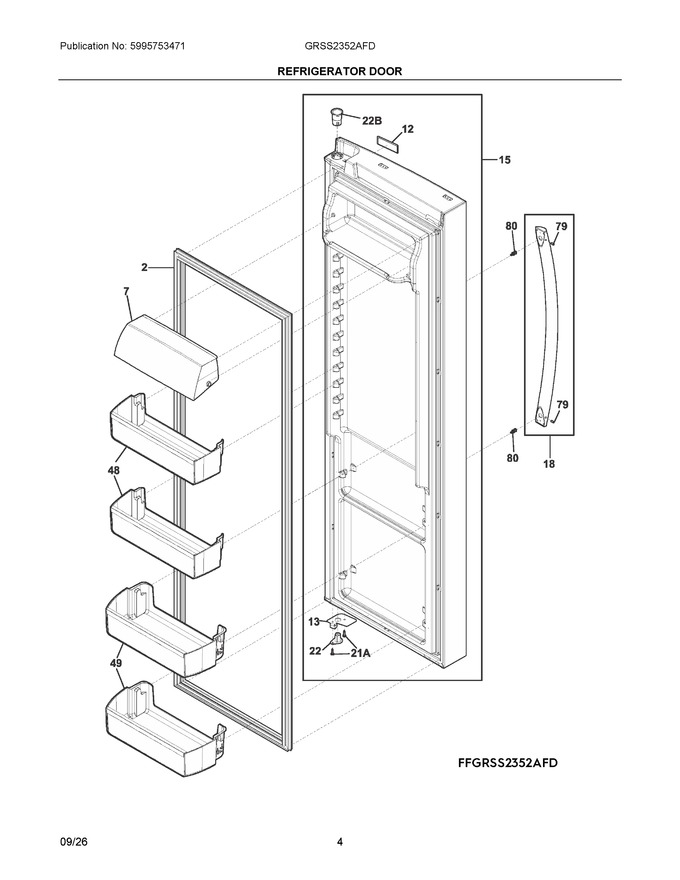

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786015 | Gasket, Magnetic, Refrigerator, Door |
|
Immediately | $ 105.18 | ||||
| 7 | 5304526901 | Cover, Compartment, Dairy |
|
Immediately | $ 118.70 | ||||
| 12 | 5304512150 | Nameplate, Chrome, Frig Gallery |
|
Immediately | $ 64.61 | ||||
| 13 | 241990201 | Door Stop, Black, Ref |
|
$ 23.63 | |||||
| 15 | 5304526961 | Door Assembly, Fresh Food, Stainless, Complete |
|
Immediately | $ 663.10 | ||||
| 18 | 140186157115 | Handle Assembly, Stainless |
|
Immediately | $ 65.51 | ||||
| 22 | 241990301 | Bearing-hinge, Gray |
|
$ 7.88 | |||||
| 48 | 5304535010 | Bin, 2-liter, W/trim, 23sd Sxs |
|
- | |||||
| 49 | 5304536370 | Bin, Gallon, W/trim, 23sdsxs Ff (Replaces: 5304535009) |
|
Immediately | $ 50.77 | ||||
| 79 | 218755405 | Screw-set, 10-32 X 0.375 (Replaces: 218755408) |
|
Immediately | $ 22.84 | ||||
| 80 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 19.01 | ||||
| 21A | 240442708 | Screw, #10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 9.27 | |||||
| 22B | 241760404 | Bearing, Hinge, Top |
|
$ 14.18 | |||||
| NI | 242039702 | Screw, Shoulder, #10-16 Type Ab, Lower Slides, W/washer |
|
$ 4.73 | |||||
| NI | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 11.81 |
