View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Freezer Drawer, Baskets
03 - Fresh Food Door
04 - Cabinet
05 - Shelves
06 - Cooling System
07 - Controls
08 - Ice Maker
09 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

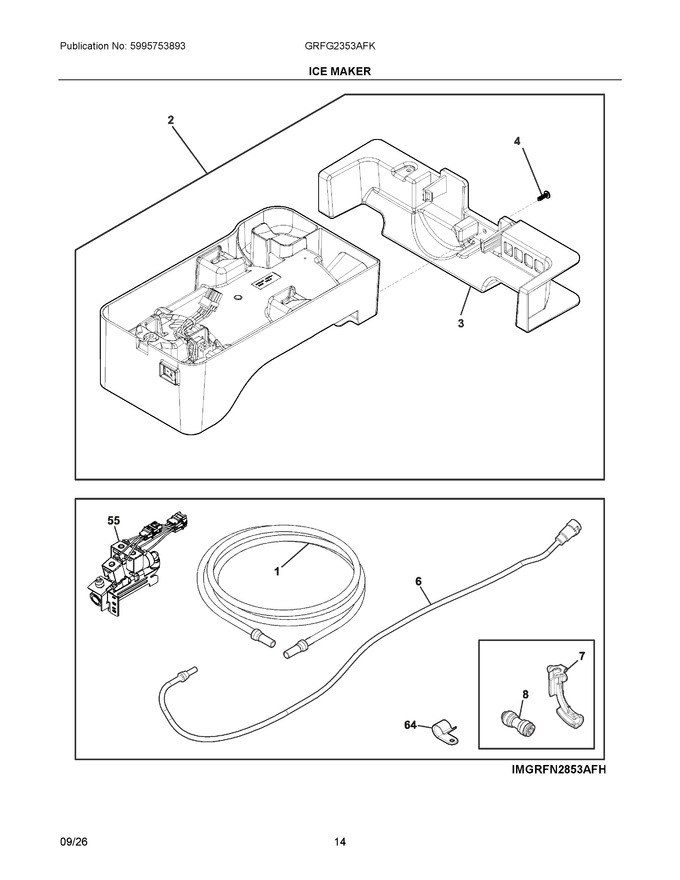

| 1 | 218976443 | Tube, Water, 23.62", Yellow, Valve, To Door |
|
Immediately | $ 16.01 | ||||
| 2 | A21755301 | Ice Maker, Assembly, Freezer, Twist Tray |
|
Immediately | $ 213.41 | ||||
| 3 | 5304531313 | Bracket, Ice Maker Block, White, Freezer |
|
$ 91.06 | |||||
| 4 | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50 (Replaces: 241953901) |
|
Immediately | $ 17.69 | ||||
| 6 | 5304535843 | Tube Assembly, Click Connex, Blue, Female |
|
Immediately | $ 11.97 | ||||
| 7 | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 11.81 | |||||
| 8 | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| 55 | 140137975102 | Valve, Water, Triple, Solenoid |
|
Immediately | $ 99.70 | ||||
| 64 | 240396801 | Clamp, Tube/wiring, 1/2", Nylon, Black/natural |
|
$ 21.26 | |||||
| NI | 241510904 | Harness-dispenser, Grounding |
|
$ 67.73 | |||||
| NI | 218515401 | Clip, Grille/tube, & Hinge |
|
$ 19.69 | |||||
| NI | 5304535774 | Nut, Click Connex, Male |
|
$ 2.59 | |||||
| NIA | 240363602 | Screw-shoulder |
|
$ 15.17 | |||||
| NIA | 5304535846 | Fill Tube, Assembly, Click Connex |
|
$ 16.07 |
