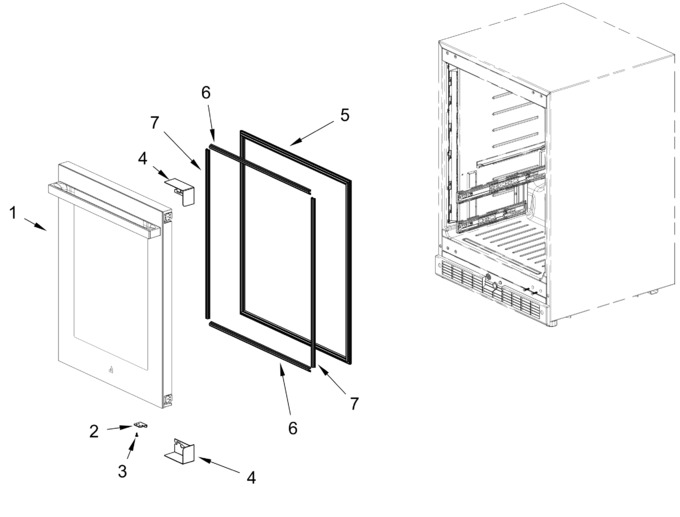

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11360617 | Door Assembly |
|
$ 1,643.48 | |||||
| 2 | W11807739 | Plate, Push (Replaces: W11721450) |
|
- | |||||
| 3 | W11675284 | Screw (Replaces: W11371095) |
|
$ 15.94 | |||||
| 4 | W11360661 | Right Hinge (top) / Left Hinge (bottom) |
|
$ 172.70 | |||||
| 5 | W11747576 | Gasket. Door (Replaces: W11360668) |
|
Immediately | $ 99.12 | ||||
| 6 | W11774798 | Sash, Gasket (top/bottom) (Replaces: W11770530) |
|
Immediately | $ 117.30 | ||||
| 7 | W11360666 | Sash, Gasket (side) |
|
Immediately | $ 300.68 | ||||
| W11360664 | Right Hinge (bottom) / Left Hinge (top) |
|
$ 172.70 |
