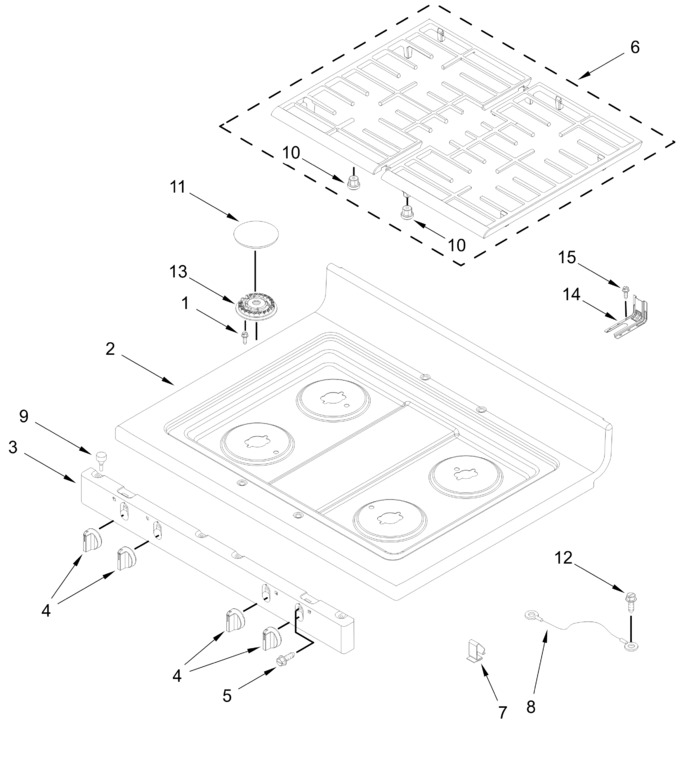

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 14.73 | ||||
| 2 | W11590296 | Cooktop (white) (Replaces: W11443181) |
|
- | |||||
| 3 | W11844184 | Panel, Manifold (white) (Replaces: W11822717) |
|
- | |||||
| 4 | W11620708 | Knob (white) (Replaces: W11488103) |
|
- | |||||
| 5 | W10837731 | Screw (Replaces: W10493726) |
|
$ 8.30 | |||||
| 6 | W11810546 | Grate Set (black) |
|
- | |||||
| 7 | W11229684 | Clip, Cooktop (Replaces: 98004722) |
|
$ 12.44 | |||||
| 8 | 3184020 | Wire, Ground (Replaces: 6610473) |
|
$ 86.92 | |||||
| 9 | W10831827 | Bumper, Cooktop (Replaces: 98013389) |
|
- | |||||
| 10 | W10919249 | Bumper, Grate (Replaces: W10465081) |
|
Immediately | $ 13.18 | ||||
| 11 | W11834892 | Burner, Cap (black) (Replaces: W11733794) |
|
- | |||||
| 12 | W10850756 | Screw, Ground (Replaces: 8534079) |
|
$ 8.20 | |||||
| 13 | W11435630 | Spreader, Flame (Replaces: W11352018) |
|
Immediately | $ 82.12 | ||||
| 14 | WPW10613666 | Bracket, Anti-tip (Replaces: W10613666) |
|
$ 17.96 | |||||
| 15 | 7101P48560 | Screw, Anti-tip |
|
- | |||||
| WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 33.43 | ||||||
| 98015022 | Bushing, Snap |
|
- | ||||||
| W11834903 | Burner, Cap (black) (Replaces: W11733859) |
|
- | ||||||
| W11834900 | Burner, Cap (black) (Replaces: W11733796) |
|
- | ||||||
| W11620511 | Insulation, Manifold (Replaces: W11492747) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| 98005896 | Clip, Wire |
|
- | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| ARI331AC8E6A0B32951011383800D6FC3B6 | (left Front, Right Front) |
|
- | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| W11435659 | Spreader, Flame (Replaces: W11352020) |
|
$ 84.85 | ||||||
| W11435657 | Spreader, Flame (Replaces: W11352021) |
|
$ 84.43 | ||||||
| W11841818 | Main Harness (Replaces: W11809274) |
|
- |
