SELECT A DIAGRAM

Cabinet And Stirrer Parts


Control Panel Parts


Internal Microwave Parts


Internal Oven Parts


Microwave Door Parts


Optional Parts (not Included)


Oven Door Parts


Oven Parts

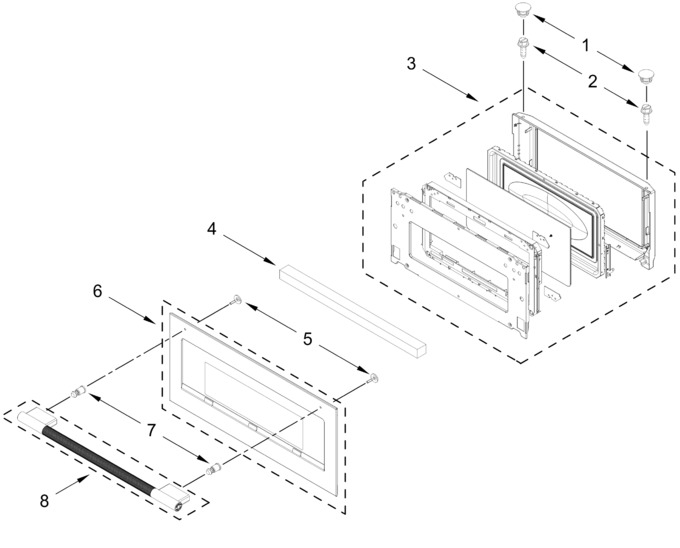

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11756840		Cap, Screw   (Replaces: 8304588BL)				$ 12.34
2	7101P33860		Screw		Appelez-nous	-
3	W11846527		Inner Door Assembly   (Replaces: W11610663)		Appelez-nous	-
4	W10359769		Foam, Door Handle				$ 14.76
5	W11749091		Screw (black)   (Replaces: W11707001)				$ 12.34
6	W11795864		Door Assembly (stainless)   (Replaces: W11688500)				$ 760.70
7	W11773159		Stud, Handle   (Replaces: W11804271)				$ 29.86
8	W11783638		Handle Assembly (stainless)   (Replaces: W11680268)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
