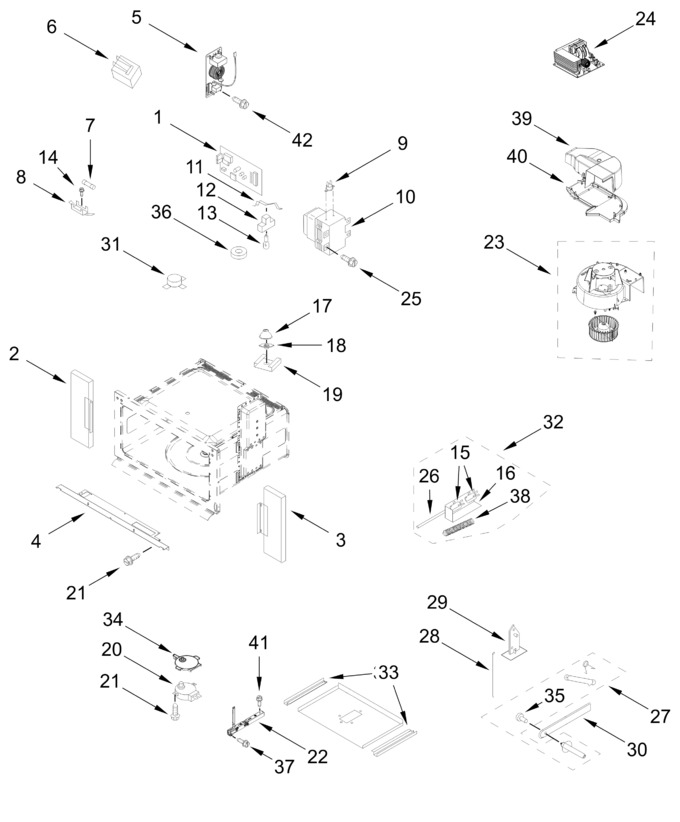

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11325603 | Control, Electric (Replaces: W11290002) |
|
Immediately | $ 289.94 | ||||
| 2 | 461967017511 | . Trim, Side (left) |
|
- | |||||
| 3 | W11044584 | Trim, Side (right) |
|
- | |||||
| 4 | W11334717 | Vent, Top |
|
Immediately | $ 62.42 | ||||
| 5 | W11758693 | Filter, Noise (Replaces: W11755010) |
|
$ 43.11 | |||||
| 6 | W11238401 | . Transformer, Light (20v) (Replaces: 461967848621) |
|
Immediately | $ 360.89 | ||||
| 7 | W11188752 | . Fuse (Replaces: 241908600053) |
|
Immediately | $ 17.37 | ||||
| 8 | W10245194 | Block, Fuse (Replaces: 4375231) |
|
$ 87.31 | |||||
| 9 | W11233913 | . Thermostat, Magnetron (Replaces: 461967846741) |
|
Immediately | $ 156.08 | ||||
| 10 | W11578959 | Magnetron (Replaces: W11504545) |
|
Immediately | $ 123.62 | ||||
| 11 | W10465869 | Spring, Lamp |
|
Immediately | $ 103.76 | ||||
| 12 | WPW10490593 | Holder, Lamp (Replaces: W10490593) |
|
$ 77.82 | |||||
| 13 | W10886919 | Lamp, Halogen (Replaces: W10795595) |
|
Immediately | $ 32.22 | ||||
| 14 | 461967826271 | . Screw |
|
- | |||||
| 15 | W10211972 | . Switch (Replaces: 461967848881) |
|
Immediately | $ 52.40 | ||||
| 16 | W11214928 | Holder, Switch (Replaces: W10876593) |
|
$ 36.06 | |||||
| 17 | 423107022541 | . Reflector |
|
$ 85.90 | |||||
| 18 | W11193483 | . Lens, Lamp (Replaces: 423107720491) |
|
Immediately | $ 104.82 | ||||
| 19 | W11440819 | Clip, Spring |
|
$ 23.00 | |||||
| 20 | W10911403 | . Motor, Turntable (Replaces: 461967848971) |
|
Immediately | $ 117.53 | ||||
| 21 | 461967825321 | . Screw |
|
$ 12.13 | |||||
| 22 | W11732690 | Hinge, Door (Replaces: W11681072) |
|
- | |||||
| 23 | W11344874 | Cooling Fan Assembly (Replaces: W11131760) |
|
Immediately | $ 191.74 | ||||
| 24 | W11578579 | Inverter (Replaces: W11504539) |
|
Immediately | $ 259.99 | ||||
| 25 | 461967825971 | . Screw |
|
- | |||||
| 26 | WPW10120235 | . Rod, Push (Replaces: 461967750464) |
|
Immediately | $ 7.32 | ||||
| 27 | WPW10128850 | Sliding Arm Assembly (Replaces: W10128850) |
|
Immediately | $ 142.08 | ||||
| 28 | W11700292 | . Spring, Torsion (Replaces: 461967570351) |
|
$ 72.30 | |||||
| 29 | W11684510 | . Support (Replaces: 461967750494) |
|
Immediately | $ 15.52 | ||||
| 30 | W11607070 | Arm, Sliding (Replaces: W11213889) |
|
$ 28.96 | |||||
| 31 | W10460457 | Sensor, Humidity |
|
Immediately | $ 132.65 | ||||
| 32 | W11797348 | Harness, Interlock (includes Switches) (Replaces: W11555169) |
|
$ 129.73 | |||||
| 33 | 8205707 | . Support, Bottom (Replaces: 461967008461) |
|
Immediately | $ 68.79 | ||||
| 34 | W11676353 | . Adapter, Turntable Motor (Replaces: 461967753742) |
|
Immediately | $ 22.86 | ||||
| 35 | WPW10128850 | . Bushing (Replaces: 461967510191) |
|
Immediately | $ 142.08 | ||||
| 36 | W10769147 | Sealing, Lamp |
|
Immediately | $ 24.49 | ||||
| 37 | W11690594 | . Screw (shoulder) (Replaces: 461967825781) |
|
$ 14.79 | |||||
| 38 | W11715912 | . Spring, Release Rod (Replaces: 423107570871) |
|
Immediately | $ 8.27 | ||||
| 39 | W11646907 | Housing, Upper Inverter (Replaces: W11591019) |
|
$ 82.38 | |||||
| 40 | W11646906 | Housing, Lower Inverter (Replaces: W11591018) |
|
- | |||||
| 41 | 461967825601 | . Screw |
|
- | |||||
| 42 | W11807875 | . Screw (Replaces: 461967825341) |
|
- | |||||
| W11546965 | Harness, Fan And Turntable (Replaces: W11454022) |
|
$ 78.88 | ||||||
| W11578580 | Jumper Harness, Communication (Replaces: W11539527) |
|
$ 30.24 | ||||||
| W11539494 | Harness, Inverter |
|
$ 43.39 | ||||||
| W11555848 | Harness, Input |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- |
