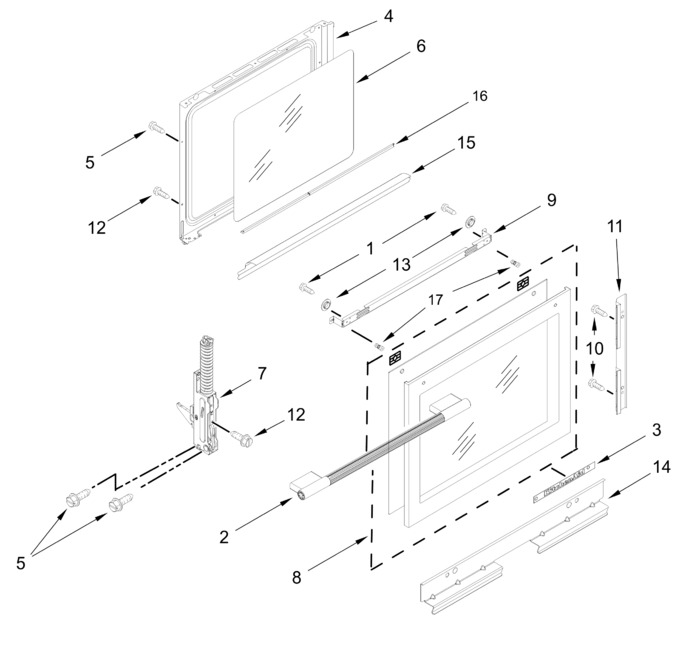

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 8.78 | ||||
| 2 | W11773160 | Handle (stainless) (Replaces: W11680261) |
|
$ 128.50 | |||||
| 3 | W11759445 | Badge (Replaces: W11688412) |
|
Immediately | $ 50.32 | ||||
| 4 | W11844175 | Liner, Door (Replaces: W11842294) |
|
- | |||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 6 | W11339500 | Glass, Inner (Replaces: W11223202) |
|
$ 171.17 | |||||
| 7 | W11162113 | Hinge, Door (active) (Replaces: W10885519) |
|
Immediately | $ 123.92 | ||||
| 8 | W11844160 | Outer Door Assembly (stainless) (Replaces: W11829904) |
|
- | |||||
| 9 | W10541911 | Bracket, Glass Upper Handle |
|
Immediately | $ 39.92 | ||||
| 10 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 11 | W10813140 | Rail, Horizontal Support |
|
Immediately | $ 177.21 | ||||
| 12 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 13 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 14.81 | ||||
| 14 | W11744483 | Rail, Vertical Support (Replaces: W10813139) |
|
Immediately | $ 76.19 | ||||
| 15 | W11251351 | Scoop, Door (black) (Replaces: W10613791) |
|
Immediately | $ 139.67 | ||||
| 16 | W11673273 | Glass Spacer (Replaces: W11379948) |
|
Immediately | $ 31.04 | ||||
| 17 | W11773159 | Stud (Replaces: W11687274) |
|
$ 29.86 |
