SELECT A DIAGRAM

01 - Cover Sheet

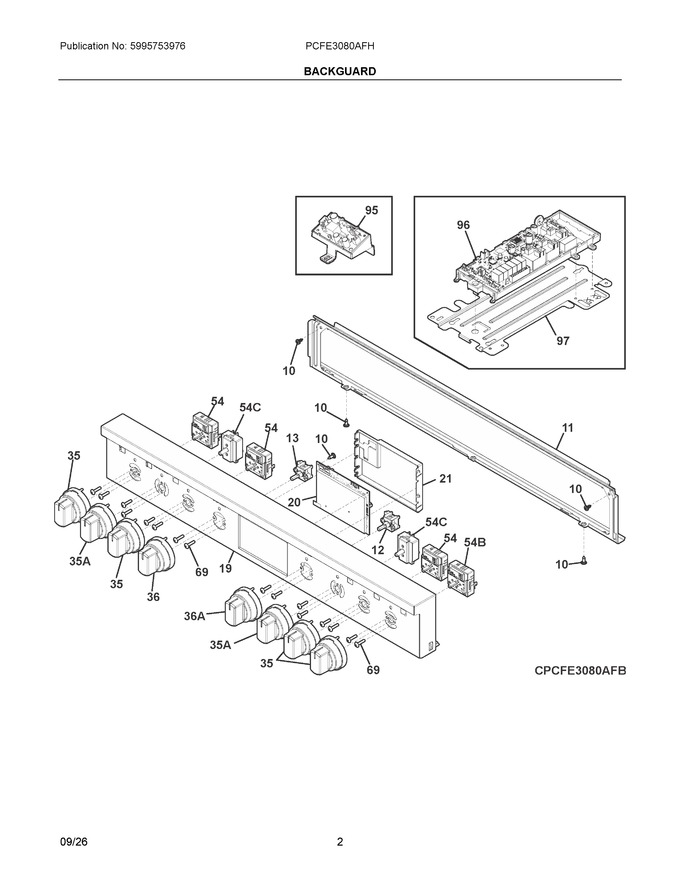

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.58
11	5304528295		Bracket, Support, Front Control			Immediately	$ 28.14
12	5304539060		Potenmeter, Temp Selct, Oven-pur, 12#			Immediately	$ 75.57
13	5304539138		Potentiomter, Mode Slct, Ovn-pur, 13#			Immediately	$ 81.81
14	5304528554		Seal, Smoothtop			Immediately	$ 35.40
19	5304538608		Control Asmy, Oven,, Ui630e-cf, 20#			Immediately	$ 214.87
20	5304538920		Control Panel, Asmy, Ss-cpg, 19			Immediately	$ 172.38
35	5304528720		Knob, Infinite Switch, Stainless, 0 Deg. Flat				$ 65.60
36	5304528448		Knob, Oven Selector, Stainless				$ 62.08
54	5304522966		Switch, Infinite, Single			Immediately	$ 86.79
69	5304528301		Screw, Truss, 8-32 X 17.65				$ 4.16
95	5304534730		Pc Board, Assembly, Backlit Power, W/housing				$ 96.61
96	140171068053		Pc Board, Ovc Relay			Immediately	$ 141.03
97	5304528373		Bracket, Ovc Board			Immediately	$ 24.59
35A	5304528722		Knob, Infinite Switch, Stainless, 90 Deg. Flat				$ 62.08
36A	5304528449		Knob, Oven Temp, Stainless			Immediately	$ 62.08
54B	140173680012		Switch, Infinite, Tboil			Immediately	$ 38.18
54C	5304537897		Switch Infinite, Warmer Zone			Immediately	$ 40.12
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	5304536356		Harness, Wiring, Backlit Knobs				$ 128.28
NI	5304536348		Harness, Wiring, Energy, Regulator				$ 139.80
NI	5304536410		Standoff, Harness Clamp			Immediately	$ 2.54
NI	5304529016		Harness, Wiring, Macs Panel, To Ui Board				$ 25.73
NI	5304528462		Harness, Wiring, Potentiometers				$ 188.46
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
