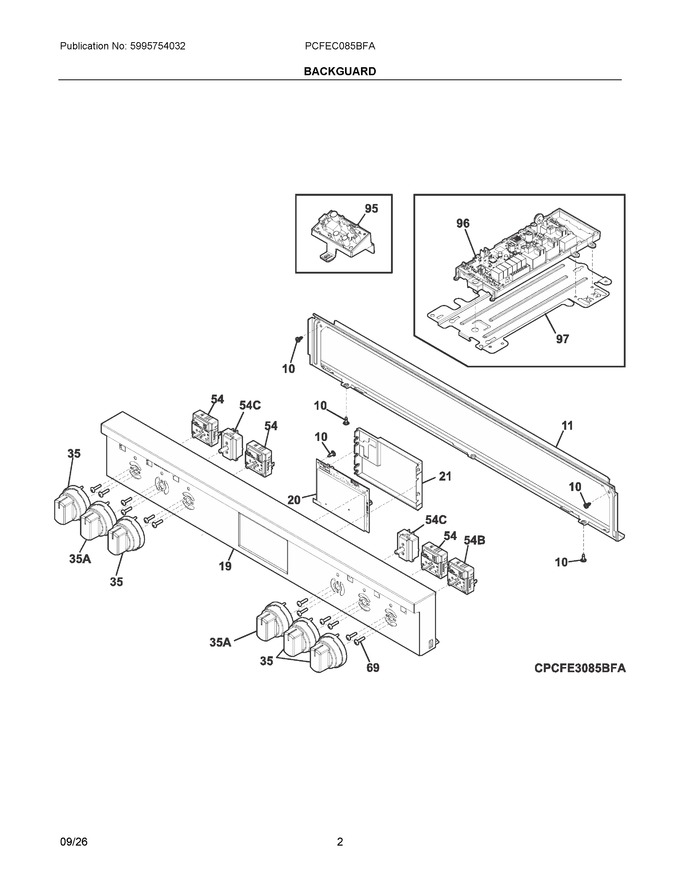

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.58
11	5304528295		Bracket, Support, Front Control			Immediately	$ 28.14
14	5304528554		Seal, Smoothtop			Immediately	$ 35.40
19	140246838050		Control Panel, Assembly, Stainless		Appelez-nous	-
20	140225820327		User Interface Board, Ui730e		Appelez-nous	-
21	5304533954		Housing, Control		Appelez-nous	-
35	5304528720		Knob, Infinite Switch, Stainless, 0 Deg. Flat				$ 65.60
54	5304522966		Switch, Infinite, Single			Immediately	$ 86.79
69	5304528301		Screw, Truss, 8-32 X 17.65				$ 4.16
95	5304534730		Pc Board, Assembly, Backlit Power, W/housing				$ 96.61
96	140171068079		Pc Board, Assembly, Ovc			Immediately	$ 142.64
97	5304528373		Bracket, Ovc Board			Immediately	$ 24.59
35A	5304528722		Knob, Infinite Switch, Stainless, 90 Deg. Flat				$ 62.08
54B	140173680012		Switch, Infinite, Tboil			Immediately	$ 38.18
54C	5304537897		Switch Infinite, Warmer Zone			Immediately	$ 40.12
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	5304536348		Harness, Wiring, Energy, Regulator				$ 139.80
NI	5304536410		Standoff, Harness Clamp			Immediately	$ 2.54
NI	5304529016		Harness, Wiring, Macs Panel, To Ui Board				$ 25.73
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	140265099147		Wiring Harness, Backlit Knobs		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
