SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic

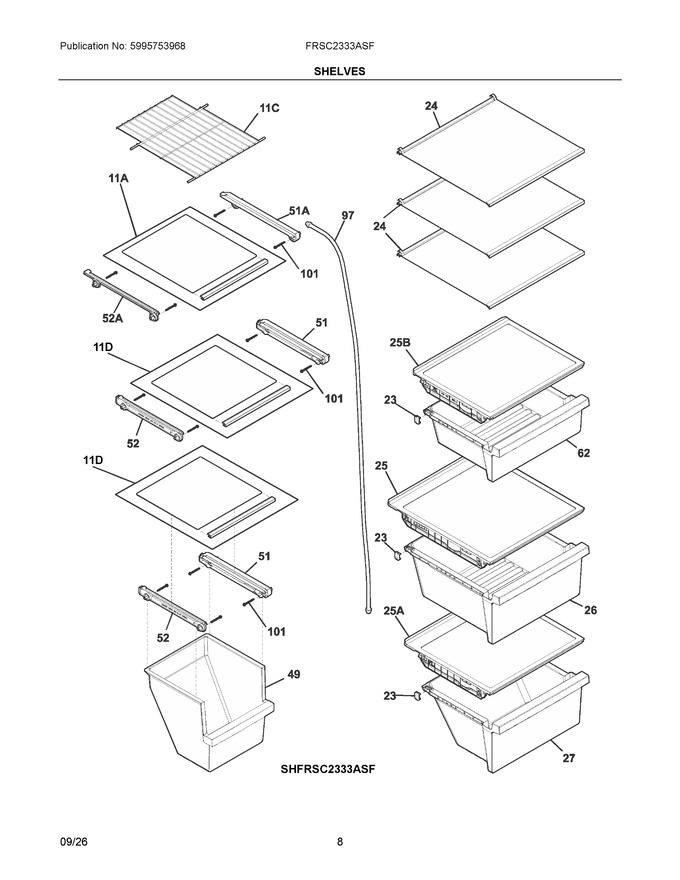

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
23	5304525911		Clip, Slide, Crisper			Immediately	$ 11.80
24	5304540160		Glass Shelf, Assembly, White, Fresh Food		Appelez-nous	-
25	140116198148		Crisper Cover, Assembly, Glass, Upper, W/trim-gasket   (Replaces: 5304527175)		Appelez-nous	-
26	5304535374		Crisper Pan, Upper, W/slide Clips		Appelez-nous	-
27	5304535375		Crisper Pan, Lower, W/slide Clips				$ 124.70
49	5304527155		Basket, Freezer, Sliding		Appelez-nous	-
51	5304540164		Lower Rail, Freezer Sxs, 23cd, Rh		Appelez-nous	-
52	5304540163		Lower Rail, Freezer Sxs, 23cd, Lh		Appelez-nous	-
62	5304535376		Deli Pan, W/slide Clips		Appelez-nous	-
97	242220119		Tube, Water, 97.5", Natural, Ilter, Secondary Valve			Immediately	$ 33.86
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 14.96
11A	140279024396		Glass Shelf, Assembly, Upper, Freezer		Appelez-nous	-
11C	809078201		Shelf, Pizza		Appelez-nous	-
11D	140279024388		Glass Shelf, Assembly, Lower, Freezer		Appelez-nous	-
25A	5304537432		Crisper Cover, Assembly, Glass, Lower, W/trim Gasket		Appelez-nous	-
25B	5304527177		Deli Cover, Assembly, Glass, W/trim-gasket		Appelez-nous	-
51A	140287167021		Rail, Upper, Freezer, Rh		Appelez-nous	-
52A	140287168029		Rail, Upper, Freezer, Lh		Appelez-nous	-
NIA	241806601		Connector, Water Tube, 5/16 To 5/16, Straight   (Replaces: 242103001)			Immediately	$ 78.40
NIA	241637202		Screw, Hex Sems Head, 8-18ab X 1-3/4				$ 5.90
NIB	242200102		Clip, Tubing, 90 Deg Elbow				$ 11.81
