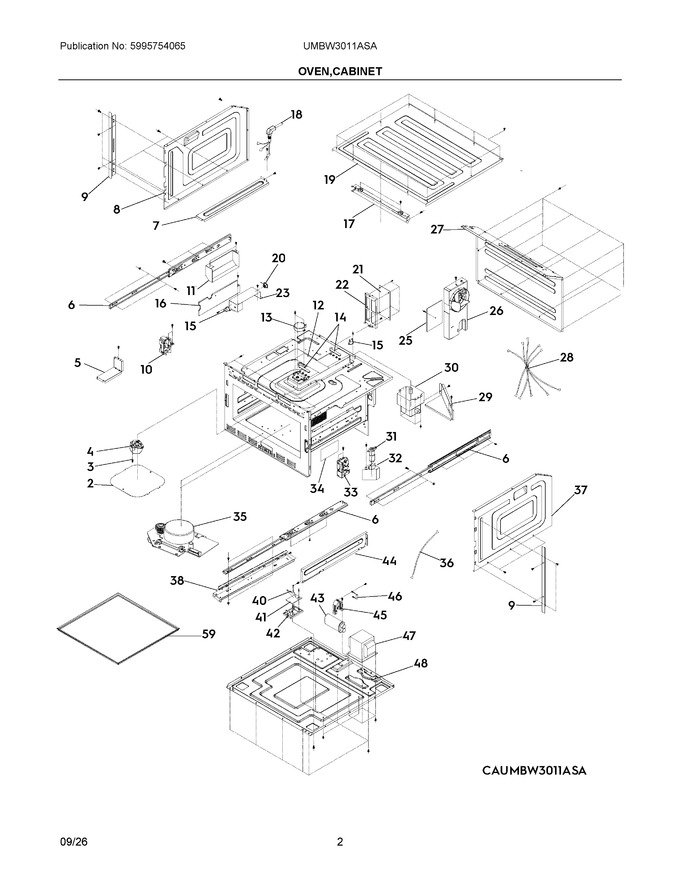

02 - Oven,cabinet
03 - Control Panel,door,misc.
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 4056061676 | Cover, Splash |
|
- | |||||
| 3 | 4056061684 | Nun, Cover Splash |
|
- | |||||
| 4 | 4056061692 | Stripper, Assembly |
|
- | |||||
| 5 | 4056061700 | Cover, Wave, Guide, Metal |
|
- | |||||
| 6 | 4056061718 | Slider, Assembly, Left-right Side |
|
- | |||||
| 7 | 4056061726 | Damper, Metal, Left Side |
|
- | |||||
| 8 | 4056061734 | Panel Side, Outer, Left |
|
- | |||||
| 9 | 4056061742 | Bracket, Outer Panel, Left-right Side |
|
- | |||||
| 10 | 4056061775 | Switch Interlock, Assembly, Left |
|
- | |||||
| 11 | 4056061783 | Cover, Wing Guide, Lower |
|
- | |||||
| 12 | 4056061791 | Insulation, Sliver Paper |
|
- | |||||
| 13 | 4056061809 | Motor, Turntable |
|
- | |||||
| 14 | 4056061817 | Cover, Vave Guide, Upper |
|
- | |||||
| 15 | 4056021050 | Thermostat, Assemlby, Magnetron |
|
- | |||||
| 16 | 4056061825 | Cover, Metal, Wind Guide |
|
- | |||||
| 17 | 4056061841 | Shield, Upper Panel |
|
- | |||||
| 18 | 4056061866 | Power Cord, Service |
|
- | |||||
| 19 | 4056061874 | Top Panel, Outer Case |
|
- | |||||
| 20 | 5304509652 | Sensor, Humidity |
|
$ 305.46 | |||||
| 21 | 4056061882 | Configured Electronic Board |
|
- | |||||
| 22 | 4056061890 | Cover, Main Board |
|
- | |||||
| 23 | 4056061908 | Cover, Wave Guide, Upper |
|
- | |||||
| 25 | 4056061916 | Power Board |
|
- | |||||
| 26 | 4056061924 | Fan Assembly, 120v, 60hz |
|
- | |||||
| 27 | 4056061932 | Panel, Rear Plate |
|
- | |||||
| 28 | 4056061940 | Harness-electrical |
|
- | |||||
| 29 | 4056061965 | Cover, Metal, Wave Guide |
|
- | |||||
| 30 | 4055792792 | Magnetron |
|
- | |||||
| 31 | 5304527876 | Bulb, Lamp |
|
- | |||||
| 32 | 4056061973 | Cover, Lamp |
|
- | |||||
| 33 | 4056061981 | Switch Interlock, Assembly, Right |
|
- | |||||
| 34 | 4056062021 | Cover, Lamp |
|
- | |||||
| 35 | 4056062039 | Motor Assembly |
|
- | |||||
| 36 | 4056062047 | Harness Wiring, Main |
|
- | |||||
| 37 | 4056062054 | Panel, Outer Case, Left Side |
|
- | |||||
| 38 | 4056062062 | Support, Hinge Rail |
|
- | |||||
| 40 | 5304509451 | Fuse |
|
Immediately | $ 13.01 | ||||
| 41 | 5304525109 | Filter, Noise, Electronic |
|
$ 86.00 | |||||
| 42 | 4056062070 | Bracket, Main Board |
|
- | |||||
| 43 | 5304509478 | Capacitor, High Voltage |
|
Immediately | $ 153.84 | ||||
| 44 | 4056062088 | Damper, Metal, Right Side |
|
- | |||||
| 45 | 4056062096 | Holder, High Voltage |
|
- | |||||
| 46 | 4056062104 | Diode, High Voltage |
|
- | |||||
| 47 | 4055340576 | Transformer, Highvoltage |
|
- | |||||
| 48 | 4056062112 | Base Panel, Assembly |
|
- | |||||
| 59 | 4056095419 | Insulator Heat, Assembly |
|
- | |||||
| NI | 4056095435 | Bracket, Power Cord |
|
- |
