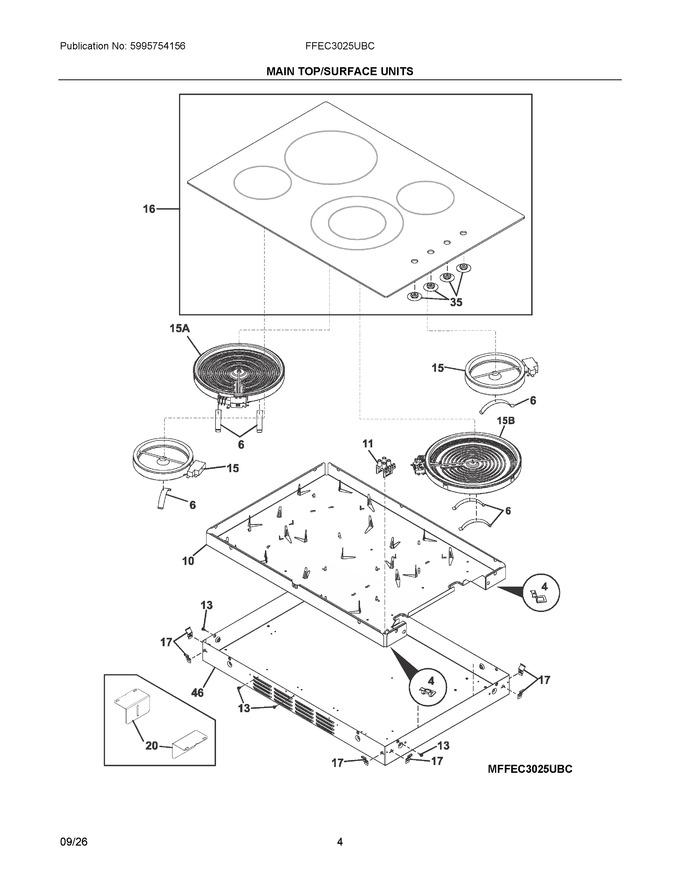

03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	387683300		Bracket, Surface Element			Immediately	$ 14.91
6	387372900		Spring, Surface Element				$ 16.85
10	5304518622		Box, Support, Inner, Element		Appelez-nous	-
11	387812006		Light Assembly, Indicator			Immediately	$ 49.77
13	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.73
15	140283001026		Element, Radiant, 140mm, 1200w				$ 81.30
16	5304518625		Maintop, Assembly, Black/stainle   (Replaces: 5304530493)				$ 700.17
17	8583871746043		Spring, Built In		Appelez-nous	-
20	5304538915		Bracket, Retainer, Maintop			Immediately	$ 6.01
35	5304515130		Bushing, Knob, Sealing			Immediately	$ 101.28
46	140229566017		Burner Box, Outer, 30		Appelez-nous	-
15A	8583054404253		Element, Surface, 9", 2500w		Appelez-nous	-
15B	8583890874024		Element, Surface, 6/9", Dual, 1600				$ 155.76
NI	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NI	8587320115205		Screw, 8-18x5		Appelez-nous	-
NI	5304537041		Cable And Wires Asmy			Immediately	$ 110.80
NI	5304534149		Bracket, Support, Plastic		Appelez-nous	-
NI	5304534148		Cover, Elbow, Box & Cable		Appelez-nous	-
NI	5304518624		Harness, Wiring, Main			Immediately	$ 132.02
NI	5304518258		Bracket, Support, Z Style		Appelez-nous	-
NI	305338602		Screw		Appelez-nous	-
NI	305376101		Screw, Bracket, Surface Element		Appelez-nous	-
NI	202855101		Holder, Cable				$ 1.58
