SELECT A DIAGRAM

Basket And Tub Parts


Console And Water Inlet Parts


Gearcase, Motor And Pump Parts


Optional Parts (not Included)


Top And Cabinet Parts

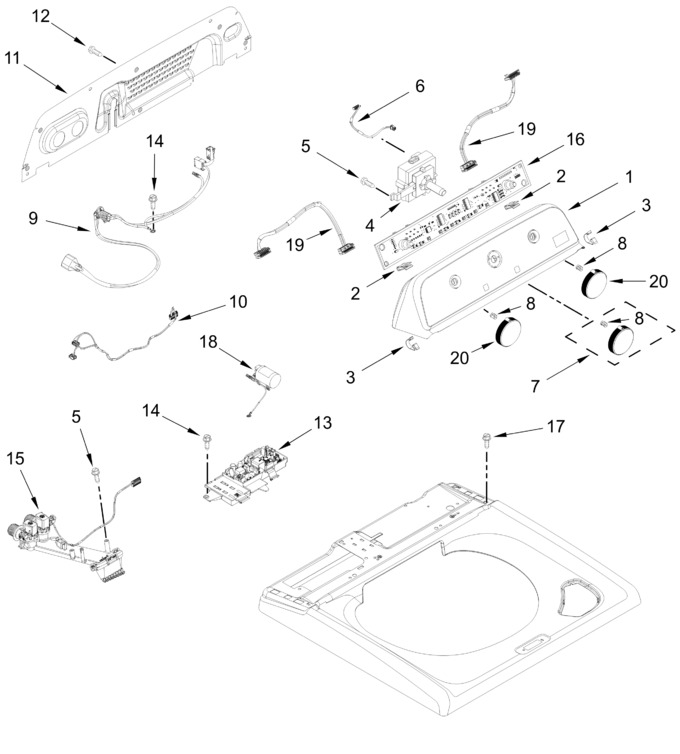

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11847777		Console Assembly (white)   (Replaces: W11824657)		Appelez-nous	-
2	W11213336		U-nut   (Replaces: W10298336)				$ 8.13
3	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59
4	W11847388		Switch, Rotary Encoder (5 Position)   (Replaces: W11726096)		Appelez-nous	-
5	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
6	W11782263		Hmi Assembly   (Replaces: W11721470)		Appelez-nous	-
7	W11782259		Knob Assembly (large)   (Replaces: W11739935)		Appelez-nous	-
8	W11788153		Clip, Spring   (Replaces: W11778059)		Appelez-nous	-
9	W11551294		Power Cord   (Replaces: W11112935)			Immediately	$ 41.51
10	W11782261		Harness, Water Valve   (Replaces: W11335103)				$ 48.31
11	W11781653		Console Rear Cover Panel   (Replaces: W11674332)				$ 277.44
12	W11685943		Screw   (Replaces: W10660565)				$ 14.97
13	W11833860		Control Unit Assembly, Machine And Motor		Appelez-nous	-
14	WP489128		Screw   (Replaces: W10142728)				$ 11.40
15	W11797439		Water Inlet Assembly (complete)   (Replaces: W11710994)				$ 366.53
16	W11675701		Hmi   (Replaces: W11612331)			Immediately	$ 319.99
17	WPW10109200		Screw   (Replaces: 97787)			Immediately	$ 8.80
18	W11638178		Line Filter   (Replaces: W11296733)				$ 86.72
19	W11736787		Harness, Hmi   (Replaces: W11506959)				$ 21.66
20	W11782279		Knob Assembly (small)   (Replaces: W11663221)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
