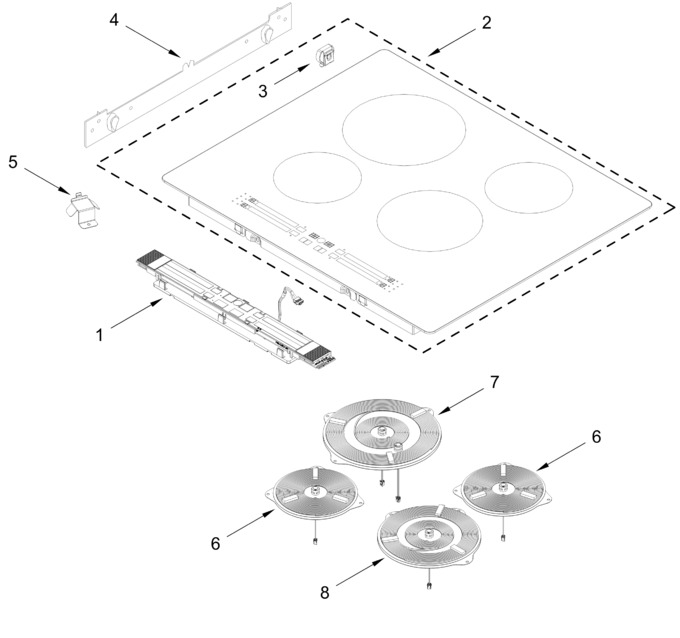

Cooktop Parts
Interior Parts
Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11595237 | Hmi Board (Replaces: W11524571) |
|
$ 412.05 | |||||
| 2 | W11495303 | Cooktop, Glass (Replaces: W11267467) |
|
$ 638.48 | |||||
| 3 | W11495019 | Cooktop Spring (Replaces: W11279477) |
|
Immediately | $ 40.26 | ||||
| 4 | W11495626 | Cooktop Support Bracket (Replaces: W11279478) |
|
Immediately | $ 85.59 | ||||
| 5 | W11302457 | Filter Support |
|
- | |||||
| 6 | W11560534 | Element (6 Inch) (Replaces: W11429950) |
|
Immediately | $ 198.51 | ||||
| 7 | W11586461 | Element (8 Inch) (Replaces: W11429952) |
|
Immediately | $ 225.06 | ||||
| 8 | W11560536 | Element (7 Inch) (Replaces: W11429951) |
|
Immediately | $ 200.09 | ||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| ARIB611E097F24A5B39CE73CD94D5F3EAC2 | (left Front, Right Rear) |
|
- |
