01 - Cover Sheet


02 - Control Panel

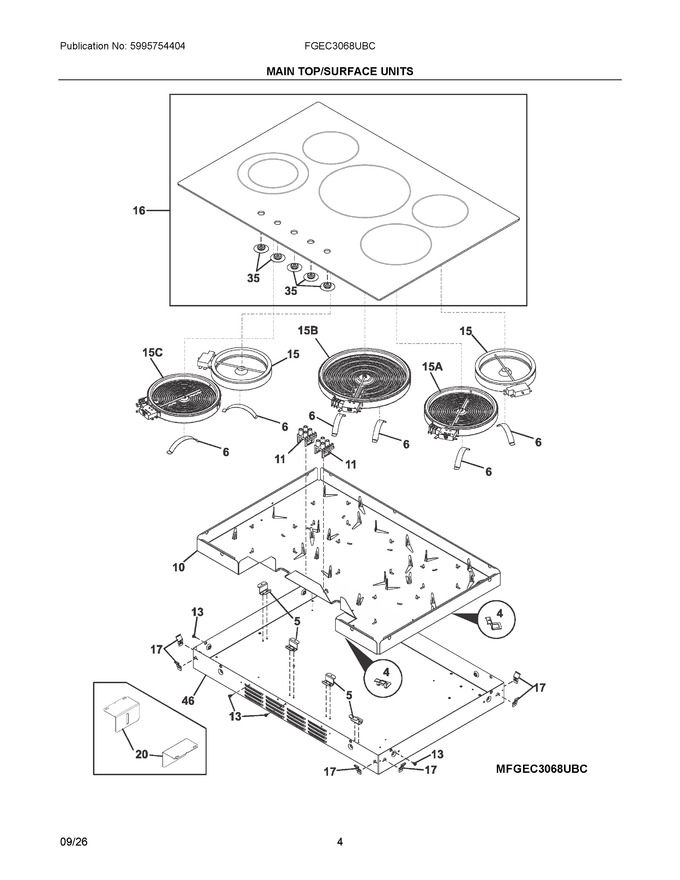

03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	387683300		Bracket, Surface Element			Immediately	$ 13.42
5	5304518258		Bracket, Support, Z Style		Appelez-nous	-
6	387372900		Spring, Surface Element				$ 15.17
10	5304518263		Box, Support, Inner, Element		Appelez-nous	-
11	387812007		Light Assembly, Indicator, Hot Surface				$ 34.89
13	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.36
15	140283001026		Element, Radiant, 140mm, 1200w				$ 73.17
17	387174602		Bracket, Spring, Cooktop Mtg.				$ 5.67
20	5304538915		Bracket, Retainer, Maintop			Immediately	$ 5.41
35	5304515130		Bushing, Knob, Sealing			Immediately	$ 91.15
46	140229566017		Burner Box, Outer, 30		Appelez-nous	-
15A	8583740636383		Heating Element, 1800w, 240v			Immediately	$ 117.78
15B	8583165300010		Element, Surface, 9", 3200w, Tboil			Immediately	$ 76.06
15C	8583181989531		Element, 750/1800w		Appelez-nous	-
NI	5304534149		Bracket, Support, Plastic		Appelez-nous	-
NI	305376101		Screw, Bracket, Surface Element		Appelez-nous	-
NI	5304537039		Cable & Wires		Appelez-nous	-
NI	8587320115205		Screw, 8-18x5		Appelez-nous	-
NI	202855101		Holder, Cable				$ 1.42
NI	5304518271		Harness, Wiring, Main		Appelez-nous	-
NI	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NI	5304534148		Cover, Elbow, Box & Cable		Appelez-nous	-
