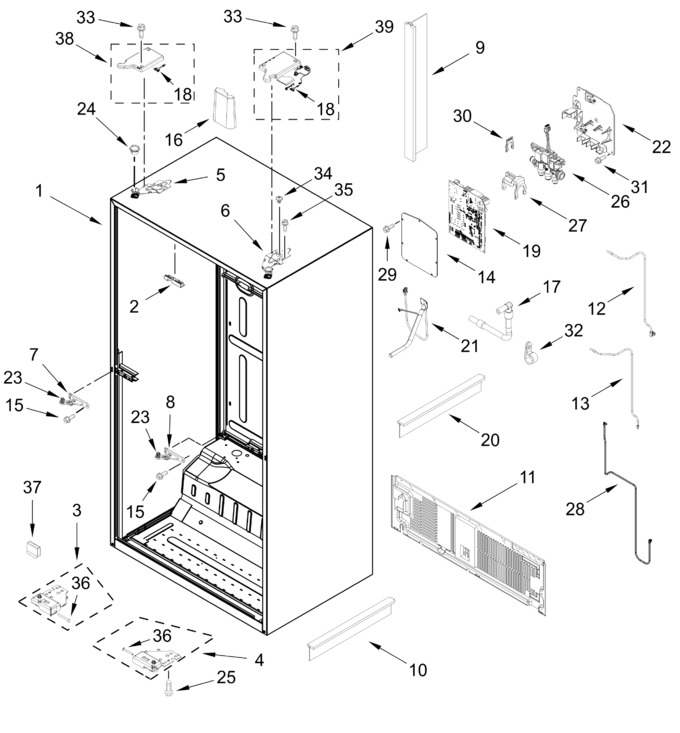

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI2948F547D7C4C1B6CA0878B04EDFC4EF | Cabinet (not A Servicable Part) |
|
- | |||||
| 2 | W11838113 | Pivot Block (Replaces: W11808291) |
|
- | |||||
| 3 | W11791081 | Roller Bracket Assembly (left Hand) (Replaces: W11561088) |
|
$ 72.18 | |||||
| 4 | W11791174 | Roller Bracket Assembly (right Hand) (Replaces: W11561087) |
|
$ 72.18 | |||||
| 5 | W11791043 | Top Hinge Assembly (left Hand) (Replaces: W11342589) |
|
- | |||||
| 6 | W11786665 | Top Hinge Assembly (right Hand) (Replaces: W11354191) |
|
- | |||||
| 7 | W11786846 | Center Hinge Assembly (left Hand) (Replaces: W11553339) |
|
$ 84.00 | |||||
| 8 | W11786849 | Center Hinge Assembly (right Hand) (Replaces: W11554905) |
|
- | |||||
| 9 | W11785608 | Air Separator Assembly (Replaces: W11681218) |
|
- | |||||
| 10 | W11785609 | Air Separator Assembly (cabinet) (Replaces: W11681219) |
|
- | |||||
| 11 | W11807499 | Unit Cover Assembly (Replaces: W11797551) |
|
- | |||||
| 12 | W11835059 | Cabinet Water Fill Tube (Replaces: W11768988) |
|
- | |||||
| 13 | W11835063 | Water Dispenser Tube (cabinet) (Replaces: W11768972) |
|
- | |||||
| 14 | W11785633 | Lid Hv Assembly (Replaces: W11701312) |
|
- | |||||
| 15 | W11819838 | Screw (Replaces: W11729359) |
|
- | |||||
| 16 | W11785638 | Tube Inlet (Replaces: W11551460) |
|
$ 57.56 | |||||
| 17 | W11807586 | Filter Outlet Tube (Replaces: W11768632) |
|
- | |||||
| 18 | W11785649 | Reed Switch (Replaces: W11548358) |
|
$ 44.17 | |||||
| 19 | W11810034 | Callisto Control Board |
|
- | |||||
| 20 | W11790663 | Air Bottom Separator (Replaces: W11676389) |
|
- | |||||
| 21 | W11807669 | Fill Tube Assembly (Replaces: W11796059) |
|
- | |||||
| 22 | W11790671 | Triple Valve Bracket (Replaces: W11541794) |
|
- | |||||
| 23 | WPW10505294 | Door Coupler (Replaces: W10505294) |
|
$ 11.90 | |||||
| 24 | W10705239 | Door Wire Retainer |
|
Immediately | $ 46.48 | ||||
| 25 | 3400524 | Screw (Replaces: W10142287) |
|
$ 11.95 | |||||
| 26 | W11787342 | Water Valve, Triple (Replaces: W11454786) |
|
- | |||||
| 27 | W11252188 | Double Lock Ring |
|
$ 18.77 | |||||
| 28 | W11835061 | Water Tube (fc Icemaker) (Replaces: W11768997) |
|
- | |||||
| 29 | WP694091 | Screw (Replaces: 694091) |
|
$ 6.80 | |||||
| 30 | W11678575 | Locking Ring (5/16) (Replaces: W11175631) |
|
$ 13.41 | |||||
| 31 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 32 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 20.16 | ||||
| 33 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 34 | W11214483 | Screw (door Wire Ground) (Replaces: 12992601) |
|
Immediately | $ 13.25 | ||||
| 35 | W11845464 | Screw (Replaces: W11438184) |
|
- | |||||
| 36 | WPW10285005 | Axle, Roller (Replaces: W10285005) |
|
$ 15.09 | |||||
| 37 | W11594405 | Clip, Roller (Replaces: W11087168) |
|
Immediately | $ 17.21 | ||||
| 38 | W11824298 | Hinge Cover Assembly (lh, Includes Reed Switch And Foil) (Replaces: W11799814) |
|
- | |||||
| 39 | W11838112 | Hinge Cover Assembly (rh, Includes Switch, Sensor And Wifi Control) (Replaces: W11823036) |
|
- |
