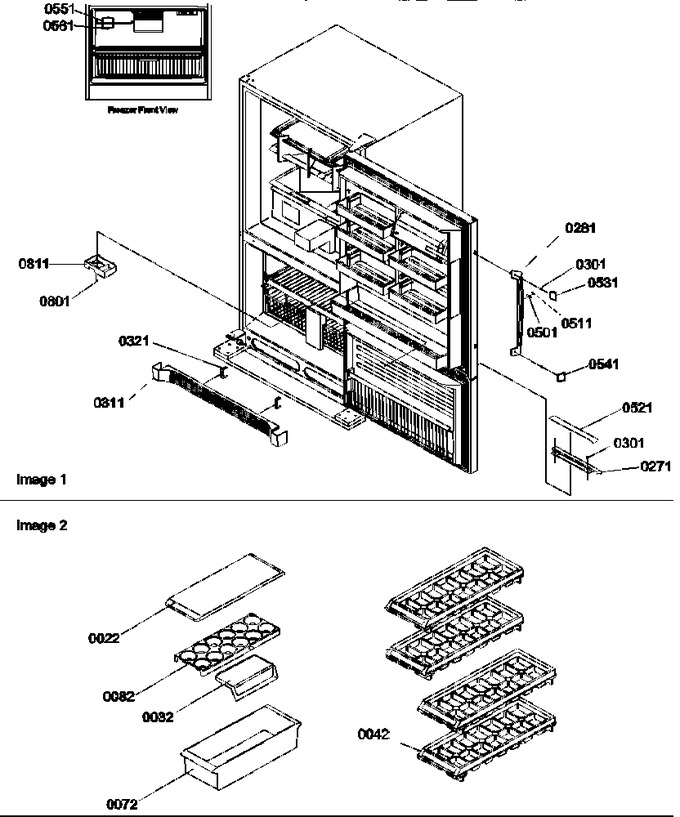

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 22 | 10436404 | Lid, Utility |
|
$ 60.85 | |||||
| 32 | 10310901 | Tray, Butter |
|
- | |||||
| 42 | WP841180A | Ice Tray (Replaces: D7725402) |
|
Immediately | $ 47.84 | ||||
| 72 | 10423128 | Bin-utility |
|
- | |||||
| 82 | 10436505 | Tray, Egg |
|
- | |||||
| 271 | WP67005140 | Handle, Frz Dr (white) (Replaces: 12285404) |
|
Immediately | $ 155.76 | ||||
| 281 | 12274601 | Handle-w Hard Ref |
|
- | |||||
| 301 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 | ||||
| 311 | 12045101 | Grille, Toe (wht) |
|
- | |||||
| 321 | 10551502 | Clip, Toe Grille |
|
$ 5.84 | |||||
| 501 | 10992104 | Insert, Nameplate |
|
- | |||||
| 511 | 10926601 | Nameplate, Handle |
|
- | |||||
| 521 | 12285501 | Cap, Hndl Frz W |
|
- | |||||
| 531 | 10913601 | Cap, Door Handle (white) |
|
- | |||||
| 541 | 10913602 | Cap, Door Handle (white) |
|
- | |||||
| 551 | D7874403 | Cover-fl Tb/plug |
|
- | |||||
| 561 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 801 | M0216531 | Screw |
|
- | |||||
| 811 | D7878816 | Cover, Frz Control |
|
- |
