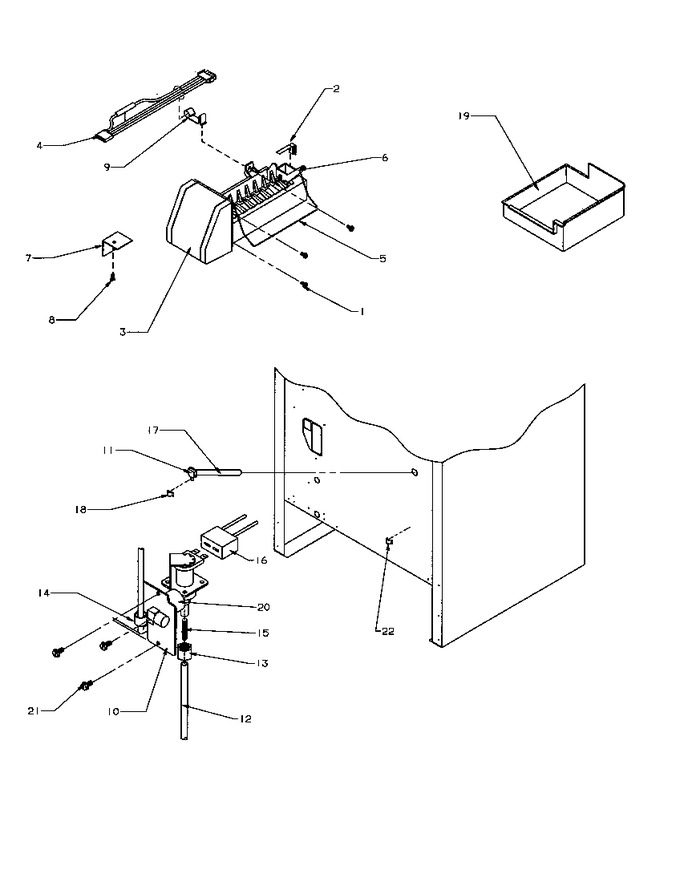

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.00
2	B5720301		Clip		Appelez-nous	-
3	WPW10289690		Cover, Ice Maker   (Replaces: 10519801)			Immediately	$ 8.40
4	WPD7813010		Harness, Ice Maker Mod   (Replaces: D7813004)			Immediately	$ 73.97
5	WP67004028		Arm, I.m. Shut-off   (Replaces: 10884401)			Immediately	$ 91.35
6	D7824706Q		Ice Maker   (Replaces: D7824702)			Immediately	$ 167.35
7	B8391802		Bracket, I/m		Appelez-nous	-
8	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 7.82
9	10526701		Clamp, Wire		Appelez-nous	-
10	W10833899		Kit, Water Valve   (Replaces: 10524602)			Immediately	$ 241.48
11	W11176463		Elbow, Fill Tube   (Replaces: 10463201)			Immediately	$ 114.15
12	W10823511		Tube, Plastic   (Replaces: B5705323)			Immediately	$ 32.41
13	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 10.97
14	M0108001		Clamp, Tube		Appelez-nous	-
15	A1055101		Spring, Antikink		Appelez-nous	-
16	10525901		Harness, Water Valve				$ 8.02
17	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)			Immediately	$ 7.82
18	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.05
19	WP67001255		Pan, Ice   (Replaces: 10476203)				$ 203.08
20	10244904		Coupling				$ 25.37
21	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 7.82
22	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.78
