01 - Cabinet Back


02 - Compressor Compartment


03 - Crisper Compartment


04 - Evap Area


05 - Fz Door


06 - Ice Maker


07 - Ref Inner Door


08 - Ref Outer Door


09 - Ref/fz Controls & Light Switches


10 - Ref/fz Shelving


11 - Rollers/drain Tube

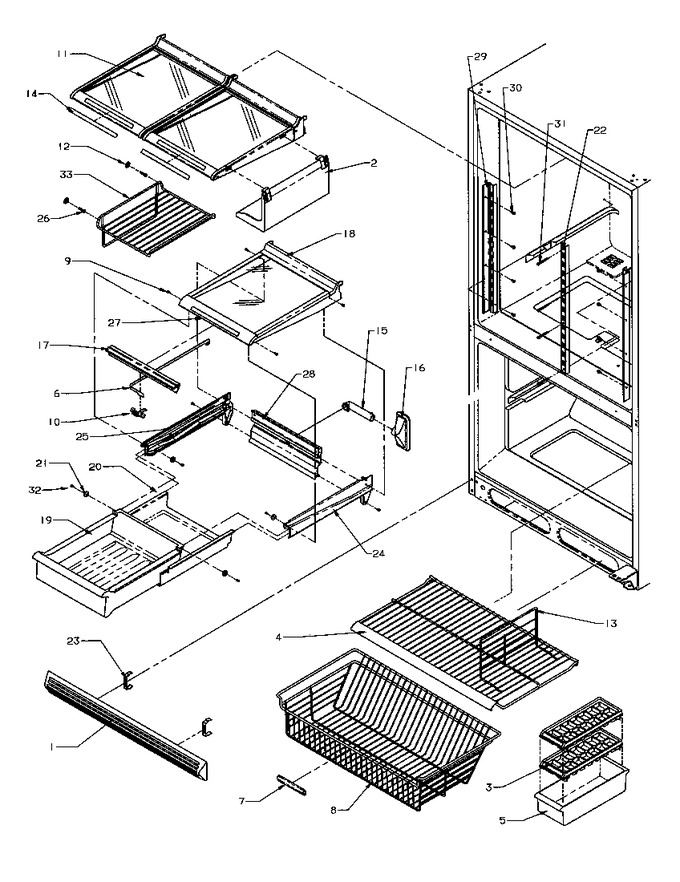

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10474804		Grille- L Toe V		Appelez-nous	-
2	10448901		Rack, Wine		Appelez-nous	-
4	10956501		Shelf, Wire Frz		Appelez-nous	-
6	10935001		Band, Mk Control		Appelez-nous	-
7	10508501		Handle, Basket		Appelez-nous	-
8	10513401		Basket, Freezer		Appelez-nous	-
9	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 7.76
10	10920401		Slide, Mk Control		Appelez-nous	-
11	10895706		Shelf, Stationary		Appelez-nous	-
13	D7806002		Divider, Wire		Appelez-nous	-
14	10979704		Insert, Shelf		Appelez-nous	-
15	10486401		Tunnel, Air Mt Kp		Appelez-nous	-
16	10501901		Grommet, Mt. Kpr.		Appelez-nous	-
17	10920301		Extrusion, Mk Frt		Appelez-nous	-
18	10895705		Shelf, Stationary		Appelez-nous	-
19	10417013		Pan,meatkeeper		Appelez-nous	-
20	10437304		Sleeve, Mk		Appelez-nous	-
21	10481001		Roller, Pan				$ 10.99
22	D7599002		Ladder, Center		Appelez-nous	-
23	10551501		Clip-toe Grille		Appelez-nous	-
24	10880202		Glide, Mk R				$ 21.98
25	10897102		Glide, L. Mk				$ 68.61
27	10979705		Insert-deli		Appelez-nous	-
28	10934901		Extrusion Mk Rear		Appelez-nous	-
29	D7599105		Ladder, Side		Appelez-nous	-
30	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 6.95
31	M0231426		Screw		Appelez-nous	-
32	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.28

    View Diagram in Separate Window       Print Part List
