BXI22S5L (BOM: P1196602W L) | Leon's : Appliance Model Lookup

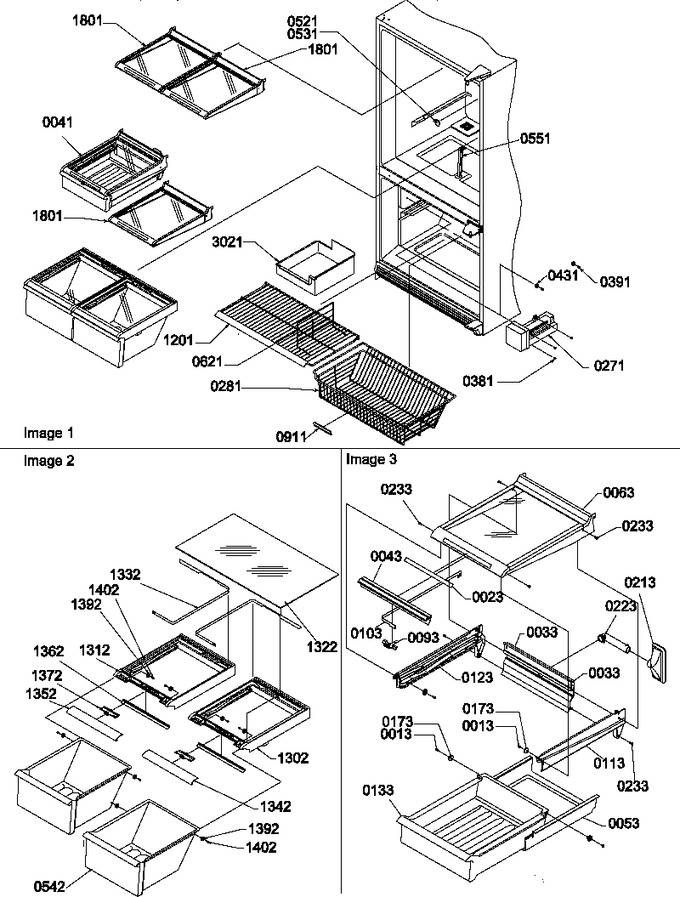

Diagram #	Part Number	Description	Availability	Ships	Price
13	67006692	Screw, Shoulder (Replaces: M0238105)			$ 10.79
23	12085805	Insert, Shelf	Appelez-nous	-
33	10934901	Extrusion Mk Rear	Appelez-nous	-
41	10928201	Assy, Mk Shelf	Appelez-nous	-
43	10920301	Extrusion, Mk Frt	Appelez-nous	-
53	10437304	Sleeve, Mk	Appelez-nous	-
63	10895705	Shelf, Stationary	Appelez-nous	-
93	10920401	Slide, Mk Control	Appelez-nous	-
103	10935002	Band, Mk Control	Appelez-nous	-
113	10880202	Glide, Mk R			$ 21.98
123	10897102	Glide, L. Mk			$ 68.61
133	10417013	Pan,meatkeeper	Appelez-nous	-
173	10481001	Roller, Pan			$ 10.99
213	10501901	Grommet, Mt. Kpr.	Appelez-nous	-
223	10486401	Tunnel, Air Mt Kp	Appelez-nous	-
233	WPW10348409	Screw, Mounting (Replaces: M0211533)		Immediately	$ 8.20
271	10563705	Kit, Ic8 (service)	Appelez-nous	-
281	10513401	Basket, Freezer	Appelez-nous	-
381	WP98165	Screw, Sm (Replaces: M0211018)			$ 8.57
521	B8362504	Insul. Mk Plug	Appelez-nous	-
531	M0310303	Kit, Plug Button	Appelez-nous	-
542	10432008	Pan,crisper	Appelez-nous	-
551	10461901	Post, Crisper Support		Immediately	$ 25.85
621	D7806002	Divider, Wire	Appelez-nous	-
911	10508501	Handle, Basket	Appelez-nous	-
1201	10956501	Shelf, Wire Frz	Appelez-nous	-
1302	10485901	Frame, Crisper (r)	Appelez-nous	-
1312	10485902	Frame, Crisper (l)	Appelez-nous	-
1322	10370035	Glass, Shelf			$ 101.12
1332	10514002	Band, Crisper Control	Appelez-nous	-
1342	10530312	Trim, R. Crisp Fr	Appelez-nous	-
1352	10530313	Trim- Crsp Front	Appelez-nous	-
1362	10530201	Seal, Crisper	Appelez-nous	-
1372	10797501	Slide, Crisper	Appelez-nous	-
1392	10481001	Roller, Pan			$ 10.99
1402	67006692	Screw, Shoulder (Replaces: M0238105)			$ 10.79
1801	10895706	Shelf, Stationary	Appelez-nous	-
3021	WP67001255	Use 10476207 (Replaces: 10476201)			$ 213.23
