SELECT A DIAGRAM
01 - Cabinet Back

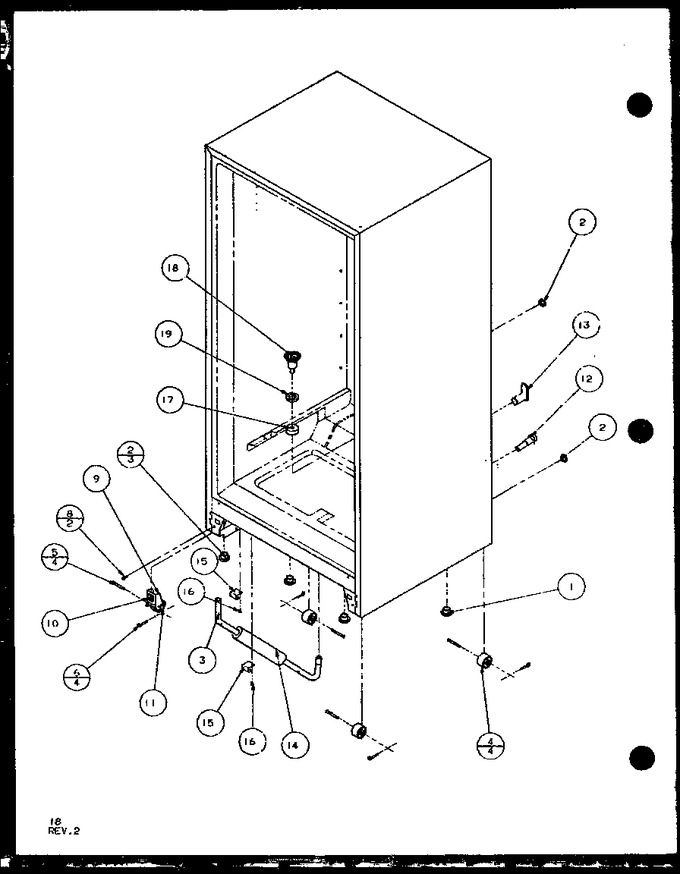

02 - Cabinet Bottom And Back
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 2 | A3080001 | Plug, Button (blk) |
|
- | |||||
| 3 | 10388701 | Drain Tube |
|
- | |||||
| 4 | M0520102 | Roller |
|
- | |||||
| 5 | M1200202 | Pin K |
|
- | |||||
| 6 | M1200004 | Cotter Pin K |
|
- | |||||
| 8 | M0204339 | Screw Bolt K |
|
- | |||||
| 9 | C8742401 | Assy, Roller Bracket |
|
- | |||||
| 10 | M0286708 | Nut, Speed |
|
$ 47.85 | |||||
| 11 | M1205302 | Rivet |
|
$ 5.85 | |||||
| 12 | 10277305 | Fill Tube Assy |
|
- | |||||
| 13 | B5749501 | Tunnel-heat Ex |
|
- | |||||
| 14 | A0329814 | Tubing Insulation By Inch |
|
- | |||||
| 15 | 10161301 | Holder Tube |
|
- | |||||
| 15 | M0102303 | Clamp |
|
- | |||||
| 16 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 8.40 | ||||
| 17 | WPB8381501 | Gasket, Drain Tube (Replaces: B8381501) |
|
$ 7.78 | |||||
| 18 | W10815413 | Funnel, Drain (Replaces: D7753901) |
|
Immediately | $ 51.50 | ||||
| 19 | WPM0500703 | Seal, O Ring (Replaces: M0500703) |
|
$ 11.47 | |||||
| NI | C8956101 | Assy, Roller Bracket |
|
- |
