Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10474801 Grille, Toe (black) Appelez-nous -
1 10474802 Grille, Toe (white) Special Order $ 44.88

1 10474803 Grille, Toe (gold) Appelez-nous -
1 10474804 Grille- L Toe V Appelez-nous -
2 M0288214 Nut, Speed Appelez-nous -
3 WP841180A Tray, Ice   (Replaces: D7725401) In-Stock Immediately $ 47.84

4 10370036 Glass, Shelf Appelez-nous -
5 10423121 Bin, Ice Appelez-nous -
6 D7620104 Rack, Ice Appelez-nous -
7 B5720301 Clip Appelez-nous -
8 10448901 Rack, Wine Appelez-nous -
9 M0270508 Washer Appelez-nous -
10 10508501 Handle, Basket Appelez-nous -
11 10513401 Basket, Freezer Appelez-nous -
12 10505612 Extrsn, Shelf Appelez-nous -
13 10588201 Slide, Mtkp Cont. Appelez-nous -
14 10436807 Ext, Gl Shelf Front Appelez-nous -
15 10436901 Extr, Gl Shelf Rear Appelez-nous -
16 10370033 Glass, Shelf Appelez-nous -
17 10562501 Ext, Gl Shelf Side Appelez-nous -
18 67006692 Screw, Hi Lo   (Replaces: M0237932) Special Order $ 10.79

19 10486401 Tunnel, Air Mt Kp Appelez-nous -
20 10501901 Grommet, Mt. Kpr. Appelez-nous -
21 10450307 Extr., Meat Kpr. Front Appelez-nous -
22 10370049 Glass, Shelf (mk Top) Appelez-nous -
23 10417012 Pan,meatkeeper Appelez-nous -
24 10437304 Sleeve, Mk Appelez-nous -
25 10681401 Rail, Painted Appelez-nous -
26 D7599002 Ladder, Center Appelez-nous -
27 10485501 Glide, R. Mk Appelez-nous -
28 10485601 Glide, L. Mk Appelez-nous -
29 10562501 Ext, Gl Shelf Side Appelez-nous -
30 10481001 Roller, Pan Special Order $ 10.99

31 67006692 Screw, Shoulder   (Replaces: 10481301) Special Order $ 10.79

32 10502201 Extrsn, Meatkeeper Appelez-nous -
33 D7599105 Ladder, Side Appelez-nous -
34 M0219559 Screw Appelez-nous -
35 67006425 Screw-sm No.8-1/2lg   (Replaces: M0211017) In-Stock Immediately $ 7.30

36 M0231426 Screw Appelez-nous -
37 10509001 Divider, Frz. Shelf Appelez-nous -
38 10502501 Ext, Mt Kpr Band Appelez-nous -
39 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

40 10436601 Cover, Shelf Rail L.h. Appelez-nous -
41 10436602 Cover, Shelf Rail Appelez-nous -
42 10681401 Rail, Painted Appelez-nous -
43 10513502 Band, Mk Control Appelez-nous -
44 10551501 Clip-toe Grille Appelez-nous -
45 10505801 Frame, Glass Shelf Appelez-nous -
46 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

47 A3189356 Gasket, Foam Appelez-nous -
NI 10480703 Ass`y, Split Shelf Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

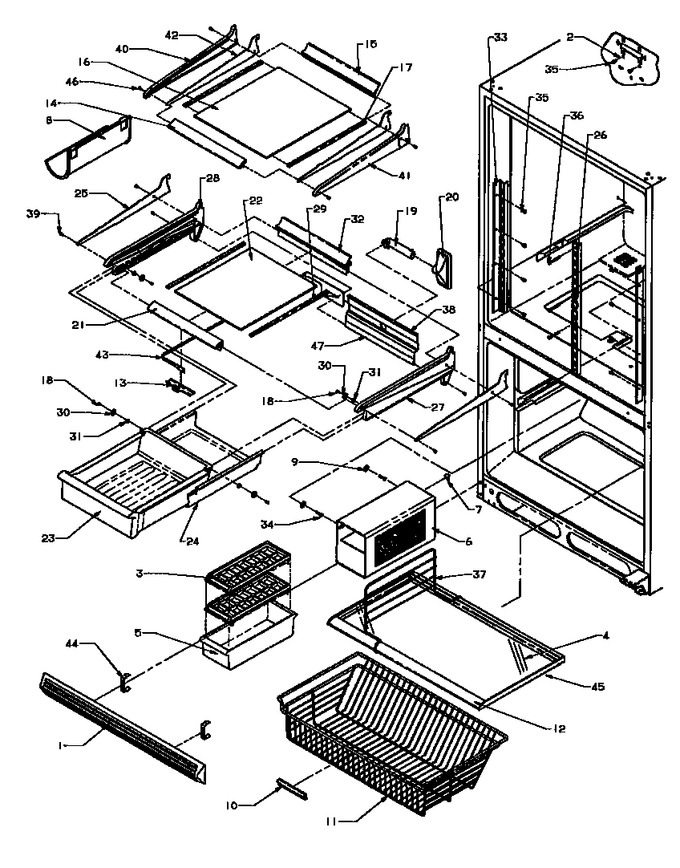

Diagram for BZ20R (BOM: P1161504W)
