SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor Compartment

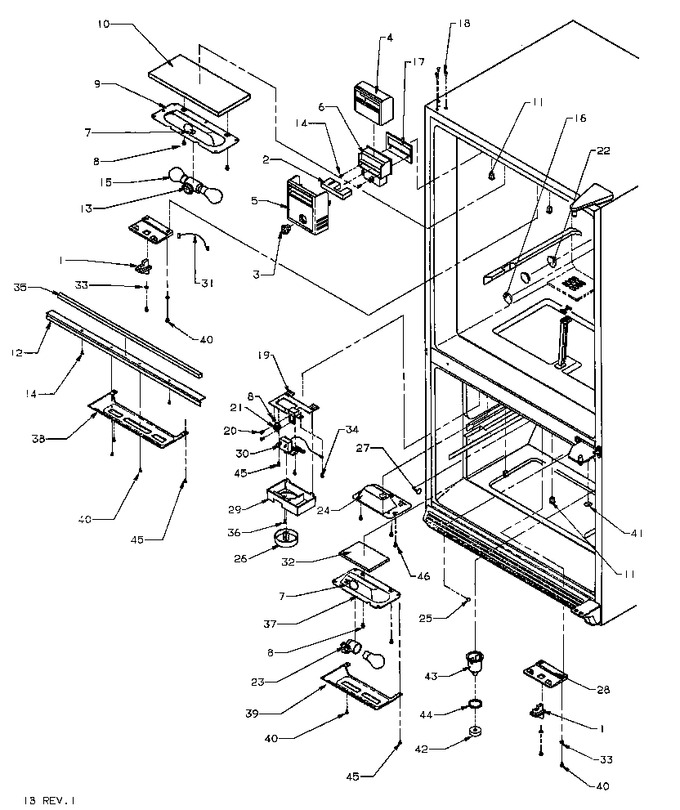

03 - Control Switches & Lights


04 - Crisper Compartment


05 - Evap Area


06 - Fz Door


07 - Ref Inner Door


08 - Ref Outer Door


09 - Ref/fz Shelving


10 - Rollers/drain Tube


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11384469		Switch-nc Light   (Replaces: C3680307)			Immediately	$ 39.09
2	C8902601		Insert, Control		Appelez-nous	-
3	D7795816		Knob-control		Appelez-nous	-
4	D7687701		Insul. Damper		Appelez-nous	-
5	D7687519		Cover, Ref. Cont.		Appelez-nous	-
6	D7547409		Control-damper		Appelez-nous	-
7	B5733302		Clip, Ground		Appelez-nous	-
8	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
9	D7716404		Housing-ref Light		Appelez-nous	-
10	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.82
11	M0580007		Grommet, Screw		Appelez-nous	-
12	D7288117		Shield, Light		Appelez-nous	-
13	D7808602		Socket, Dual Lamp		Appelez-nous	-
14	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.00
15	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
16	M0310303		Kit, Plug Button		Appelez-nous	-
17	B8345401		Gasket, Damper		Appelez-nous	-
18	WP67001130		Plug   (Replaces: M0310709)			Immediately	$ 5.98
18	M0310716		Plug		Appelez-nous	-
18	WP12246608		Plug, Button (blk)   (Replaces: M0310727)			Immediately	$ 7.76
18	M0310712		Plug		Appelez-nous	-
19	10502701		Brkt, Control		Appelez-nous	-
19	10649801		Brkt Cont.		Appelez-nous	-
20	M0010215		Pop Rivet		Appelez-nous	-
21	M0350201		Switch, St		Appelez-nous	-
22	B8362504		Insul. Mk Plug		Appelez-nous	-
23	C8973404		Socket-light		Appelez-nous	-
24	10649702		Housing, Frz. Cont.		Appelez-nous	-
25	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 5.98
26	D7689905		Knob, Control		Appelez-nous	-
27	M0311301		Plug Button		Appelez-nous	-
28	D7297603		Cover, Light Sw		Appelez-nous	-
29	D7878811		Cover, Temp. Control		Appelez-nous	-
29	D7878813		Cover, Temp. Control		Appelez-nous	-
30	W10752646		Control, Temp   (Replaces: C8946703)			Immediately	$ 143.12
31	B5781002		Jumper Wire		Appelez-nous	-
32	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
33	M0270538		Washer		Appelez-nous	-
34	M0253916		Screw		Appelez-nous	-
35	A3030328		Gasket (1= 1ft.)		Appelez-nous	-
36	M0216531		Screw		Appelez-nous	-
37	D7760102		Housing Frz Light		Appelez-nous	-
38	10493201		Cover, Ref. Light		Appelez-nous	-
39	10493301		Cover, Frz Light		Appelez-nous	-
40	M0219546		Screw		Appelez-nous	-
41	M0310308		Plug, Button (wht)		Appelez-nous	-
NI	WPW10339879		Tie   (Replaces: M0321202)				$ 7.90
NI	10538502		Harness, Mullion		Appelez-nous	-
NI	10734001		Harness, Mullion		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
