SELECT A DIAGRAM

Diagram for 02 - Cabinet
02 - Cabinet

Diagram for 03 - Refrigerator Liner
03 - Refrigerator Liner

Diagram for 04 - Refrigerator Shelf
04 - Refrigerator Shelf

Diagram for 05 - Freezer Liner
05 - Freezer Liner

Diagram for 06 - Motor And Ice Container
06 - Motor And Ice Container

Diagram for 07 - Refrigerator Door
07 - Refrigerator Door

Diagram for 08 - Freezer Door
08 - Freezer Door

Diagram for 09 - Dispenser Front
09 - Dispenser Front

Diagram for 10 - Unit
10 - Unit

Diagram for 11 - Air Flow
11 - Air Flow

Diagram for 12 - Control
12 - Control

Diagram for 13 - Ice Maker , Not Illustrated
13 - Ice Maker , Not Illustrated


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/A Liner (not A Serviceable Part) Appelez-nous -
2 1115380 Slide, Ice Door Appelez-nous -
3 1115254 Door, Ice Compartment Appelez-nous -
4 1108436 Evaporator, Support Appelez-nous -
5 W11624204 Screw, 8 X 1/2   (Replaces: 486194) Special Order $ 14.02

6 2215823 Clip, Air Duct (2)   (Replaces: 842534) Special Order $ 10.42

7 1115317 Support, Stud (4) Appelez-nous -
8 2150324 Basket (2) Appelez-nous -
9 1120549 Trim, Basket Appelez-nous -
10 1114674 Basket, Tall Appelez-nous -
11 1114676 Basket, Slope Appelez-nous -
12 1115253 Rack, Pizza Appelez-nous -
13 942842 Terminal Block Appelez-nous -
14 1114607 Wiring Cover Appelez-nous -
15 WP488729 Screw   (Replaces: 489176) In-Stock Immediately $ 7.79

16 942768 Fitting, Drain Appelez-nous -
17 1114680 Shelf Track (left Side (4)) Appelez-nous -
17 1114679 Shelf Track (right Side (4)) Appelez-nous -
18 W11693756 Screw   (Replaces: 487042) In-Stock Immediately $ 14.06

19 W11457217 Switch, Rocker Arm   (Replaces: 1115373) Special Order $ 38.18

20 4388538 Stud (4)   (Replaces: 1110718) In-Stock Immediately $ 31.34

21 1115386 Stud, Shelf (4) Appelez-nous -
22 1115258 Door, Top Compartment Appelez-nous -
23 1115256 Shelf, Top Compartment Appelez-nous -
24 1115389 Light Lens Appelez-nous -
25 8009 Light Bulb   (Replaces: 527949) In-Stock Immediately $ 18.67

26 4387478 Light Socket   (Replaces: 851067) In-Stock Immediately $ 110.16

27 WP489478 Screw   (Replaces: 489242) Special Order $ 7.75

27 WP681414 Screw (repair)   (Replaces: 489254) In-Stock Immediately $ 7.85

28 W10845585 Slide, Container (left Side)   (Replaces: 1119237) Special Order $ 132.77

28 W10845583 Slide, Container (right Side)   (Replaces: 1119293) Special Order $ 123.92

29 718257 Screw, 8 X 1-3/8 (4)   (Replaces: 489100) Appelez-nous -
30 1129195 Shim, Basket Track (2) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

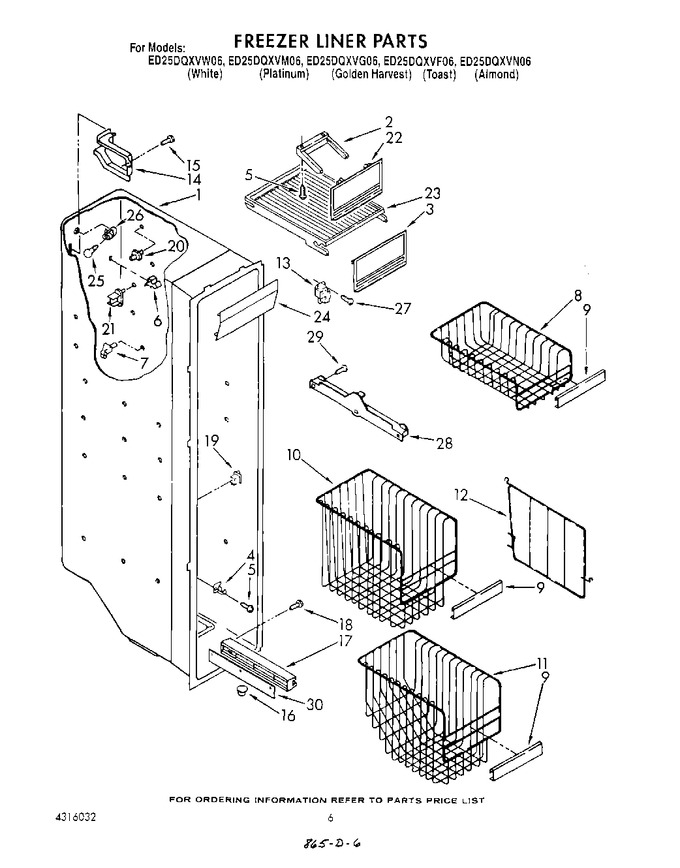

Diagram for ED25DQXVG06
