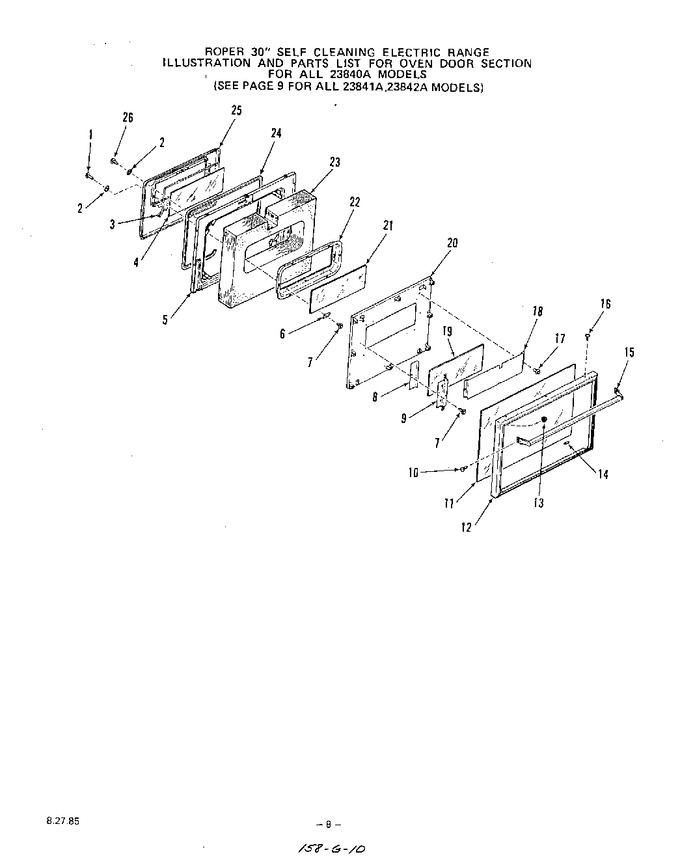

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	105799		Screw 10abx1		Appelez-nous	-
2	21067		Washer		Appelez-nous	-
3	303156		Seal		Appelez-nous	-
4	312426		Inner Glass-oven Door		Appelez-nous	-
5	325951		Lining-oven Door		Appelez-nous	-
6	326009		Retainer-door Glass (4 Req)		Appelez-nous	-
7	327320		Screw 10-16x7/16``		Appelez-nous	-
8	326228		Spacer-oven Door Glass (lt. Or Rt.)		Appelez-nous	-
9	WP487353		Clamp-oven Door Glass (lt. Or Rt.)   (Replaces: 307842)				$ 7.95
10	319447		Screw 8-32 X 1/2``		Appelez-nous	-
11	326367		Outer Glass-oven Door		Appelez-nous	-
12	326001		Frame-oven Door		Appelez-nous	-
13	239764		Keps Nut 8-32		Appelez-nous	-
14	112370		Cushion-door Glass (3 Req)		Appelez-nous	-
15	303342		Handle-oven Door		Appelez-nous	-
16	316849		Screw-10-32x1/2``		Appelez-nous	-
17	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
18	326649		Baffle-insulation Retainer		Appelez-nous	-
19	326088		Intermediate Glass-oven Door		Appelez-nous	-
20	325989		Retainer-oven Door Insulation		Appelez-nous	-
21	326632		Center Glass-oven Door		Appelez-nous	-
22	324006		Retainer-oven Door Glass		Appelez-nous	-
23	326000		Insulation-oven Door		Appelez-nous	-
24	292244		Gasket		Appelez-nous	-
25	326184		Plug-oven Door Lining		Appelez-nous	-
26	102376		Screw 10-32 X 1/2``		Appelez-nous	-
