02 - Backguard
03 - Main Top
04 - Optional Equipment
05 - Power Lock
06 - Body
07 - Oven Door
08 - Section
SELECT A DIAGRAM
New Model Search:

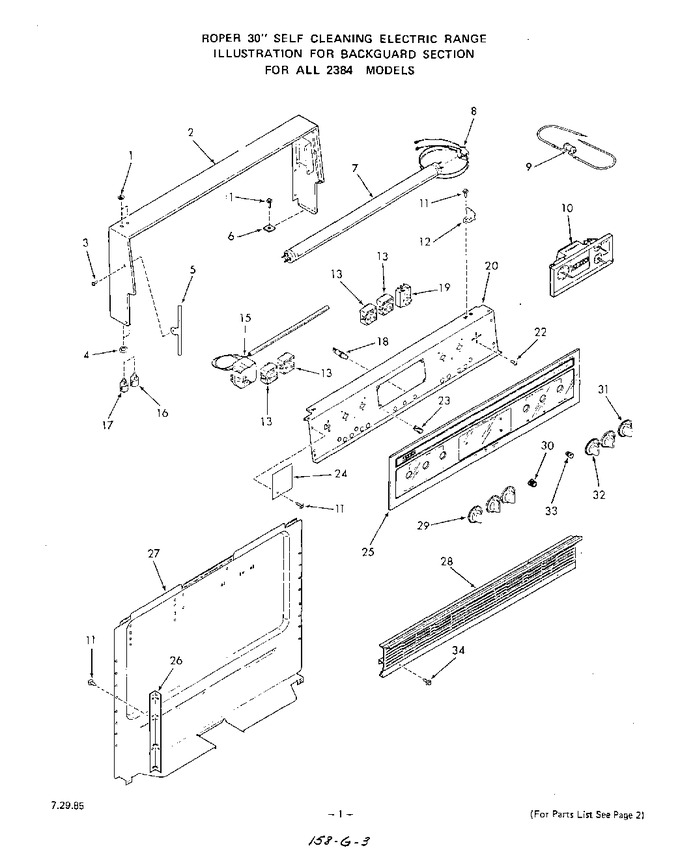

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 87403 | Knurled Nut |
|
- | |||||
| 2 | 296584 | Frame-backguard |
|
- | |||||
| 3 | 327621 | Screw 6-20x3/8`` |
|
- | |||||
| 4 | 236129 | Pal Nut |
|
- | |||||
| 5 | 299705 | End Trim- Top Lamp Glass (lt. Or Rt.) |
|
- | |||||
| 6 | 323523 | Plate (rt. Or Lt.) |
|
- | |||||
| 7 | 71734 | Fluorescent Lamp (20 W - 24``) |
|
- | |||||
| 8 | 237316 | Left |
|
- | |||||
| 8 | 113745 | Right |
|
- | |||||
| 9 | 327624 | Wire Lead W/resistor |
|
- | |||||
| 10 | 307550 | Clock W/1 Hr. Timer |
|
- | |||||
| 11 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 12 | DD67-00074A | Bracket-fluorescent Lamp (rt. Or Lt.) (Replaces: 113236) |
|
Immediately | $ 1.84 | ||||
| 13 | 324609 | Rt.frt. & Lt.rr. Except 23840a Models |
|
- | |||||
| 13 | 324608 | Lt.frt. & Rt. Rr. Except 23840a Models |
|
- | |||||
| 13 | 5500-200 | 4 Req. All 23840a Models (Replaces: 320944) |
|
Immediately | $ 60.94 | ||||
| 15 | 324686 | Thermostat |
|
- | |||||
| 16 | DE81-03691A | Push Switch-fluorescent Lamp (Replaces: 105386) |
|
$ 110.00 | |||||
| 17 | 283523 | Switch-oven Light |
|
- | |||||
| 18 | 296317 | Light-indicator (oven Lock & Surface) |
|
- | |||||
| 19 | 327163 | Selector Switch |
|
- | |||||
| 20 | 307690 | Control Panel |
|
- | |||||
| 22 | 78565 | Screw 8-32x3/16`` |
|
- | |||||
| 23 | 293577 | Clip-tubular (4 Req) |
|
- | |||||
| 24 | 300330 | Cover-switch Shield |
|
- | |||||
| 25 | 327184 | Glass-backguard |
|
- | |||||
| 26 | 319361 | Support-backguard (lt. Or Rt.) |
|
- | |||||
| 27 | 326121 | Cover-backguard Wire |
|
- | |||||
| 28 | 313668 | Front-backguard Bottom |
|
- | |||||
| 29 | 325493 | Knob-thermostat |
|
- | |||||
| 30 | 294810 | Knob-clock (1 Req) (minute Minder) |
|
- | |||||
| 31 | 326316 | Knob-selector |
|
- | |||||
| 32 | 325472 | Knob-infinite Control (4 Req) |
|
- | |||||
| 33 | 109225 | Knob-clock (start & Stop Time) (2) |
|
- | |||||
| 34 | 327621 | Screw 6-20x3/8`` |
|
- |
