Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1110652 Freezer, Door Panel (also Order Item 11) Appelez-nous -
2 988402 Tap Plate Appelez-nous -
3 1124713 Handle, Center Appelez-nous -
4 939886 Seal, Hinge Pin Appelez-nous -
5 1119359 End Cap (2) Appelez-nous -
6 WPW10141645 Screw, 8 X 1/2 (4)   (Replaces: 489084) Special Order $ 7.67

7 935075 Shim, End Cap (2) Appelez-nous -
8 1114380 Divider, Shelf Appelez-nous -
9 1121337 Shelf Bin (3) Appelez-nous -
10 1118192 Door Gasket, Magnetic Appelez-nous -
11 876029 Foam Insulation Appelez-nous -
12 941242 Screw Anchor (2) Appelez-nous -
13 1119215 Panel, Interior Door Appelez-nous -
14 1127144 Trim, Door Shelf Appelez-nous -
15 WPW10141645 Screw (repair)   (Replaces: 489084) Special Order $ 7.67

15 WP489069 Screw, 7 X 1/2 (30)   (Replaces: 489101) In-Stock Immediately $ 7.86

16 1115269 Trim, Door Shelf Appelez-nous -
17 1119212 Harness, Door (includes Illustration 18) Appelez-nous -
18 936183 Connector, Plug Appelez-nous -
19 WP488234 Screw, 8-32 X 5/32   (Replaces: 488889) Special Order $ 6.74

20 1119060 Tube, Door Wiring Appelez-nous -
21 227991 Wire Connector Appelez-nous -
22 1119038 Insulation, Dispenser Appelez-nous -
23 1119036 Chute, Ice Appelez-nous -
24 534927 Hole Plug (2) Appelez-nous -
25 1109246 Tube, Door Wiring Appelez-nous -
26 4318165 Door Closer, Upper Cam   (Replaces: 986758) In-Stock Immediately $ 27.36

27 WP1104787 Shim, Door Closer   (Replaces: 1104787) Special Order $ 7.58

28 WP489069 Screw, 8 X 1/2   (Replaces: 488938) In-Stock Immediately $ 7.86

29 988420 Bracket, Door Stop Appelez-nous -
30 988421 Shim Appelez-nous -
31 488549 Screw, 8 X 5/8 Appelez-nous -
32 1119360 Retainer, Insert Appelez-nous -
33 1119361 Insert, Handle Appelez-nous -
34 1119373 Insert, Handle Appelez-nous -
35 1119372 Retainer, Insert Appelez-nous -
36 941259 End Cap (2) Appelez-nous -
37 489075 Screw, 10-32 X 5/8 (2) Appelez-nous -
38 1119062 Trim, Door Appelez-nous -
39 1115333 End Cap, Trim Appelez-nous -
40 1115364 End Cap, Trim Appelez-nous -
41 1115271 Overlay Appelez-nous -
42 1116986 Pin Plate (6) Special Order $ 12.10

43 489022 Screw, 6-20 X 3/8 (4) Appelez-nous -
44 WP939101 Screw Anchor (2)   (Replaces: 939101) Special Order $ 7.50

45 1115378 Door Dike (2) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

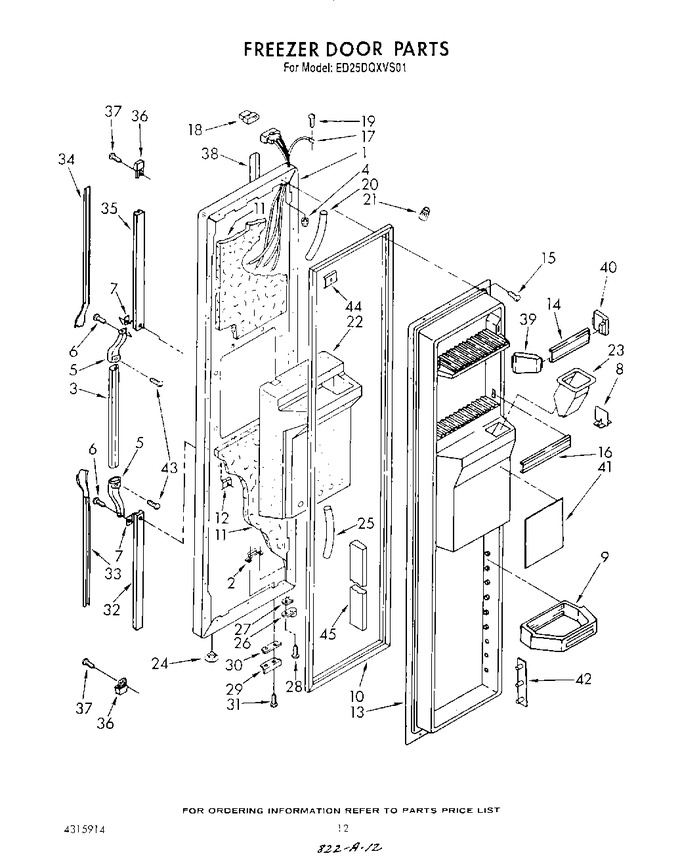

Diagram for ED25DQXVS01
