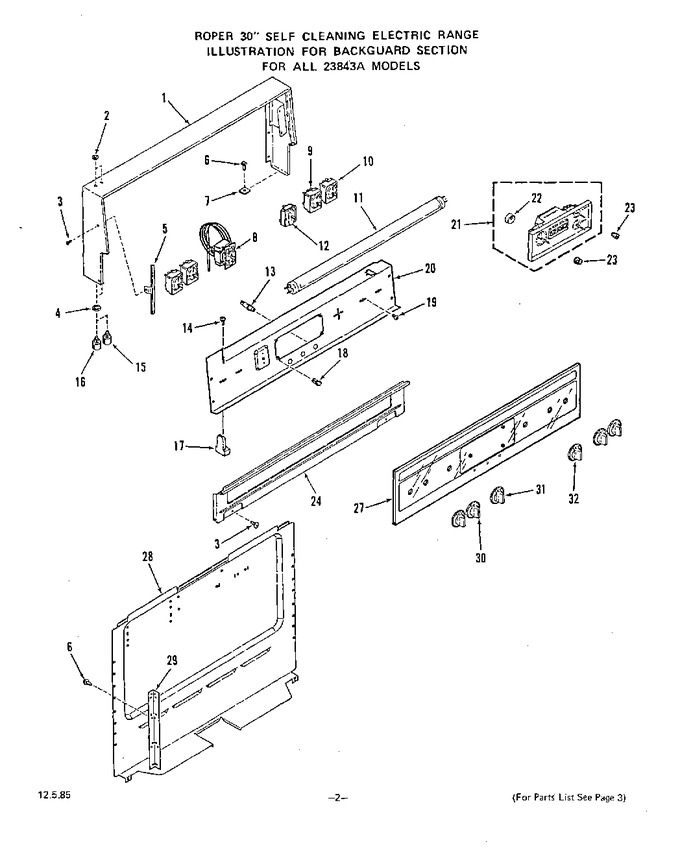

1	296584		Frame-backguard		Appelez-nous	-
2	87403		Knurled Nut (2 Req)		Appelez-nous	-
3	327621		Screw 6-20x3/8``		Appelez-nous	-
4	236129		Pal Nut 3/8-27 (2 Req)		Appelez-nous	-
5	299705		End Trim- Top Lamp Glass (lt. Or Rt.)		Appelez-nous	-
6	327320		Screw 10-16x7/16``		Appelez-nous	-
7	323523		Plate (rt. Or Lt.)		Appelez-nous	-
8	329907		Oven Thermostat		Appelez-nous	-
9	324608		Infinite Switch-rt. Rear Or Lt Front		Appelez-nous	-
10	324609		Infinite Switch-rt. Front Or Lt. Rear		Appelez-nous	-
11	71734		Fluorescent Lamp		Appelez-nous	-
12	329905		Selector Switch		Appelez-nous	-
13	296317		Surface Or Lock		Appelez-nous	-
13	329931		Oven		Appelez-nous	-
14	108788		Screw 6-32 X 1/2``		Appelez-nous	-
15	DE81-03691A		Push Switch-fluorescent Lamp   (Replaces: 105386)				$ 110.00
16	283523		Push Switch-oven Light		Appelez-nous	-
17	325597		Holder-fluorescent Lamp (lt. Or Rt.)		Appelez-nous	-
18	293577		Tubular Clip (4 Req.)		Appelez-nous	-
19	78565		Screw 8-32x3/16``		Appelez-nous	-
20	330554		Mounting Panel-controls		Appelez-nous	-
21	330938		Clock W/1 Hr. Timer (inc`s. Key 22)		Appelez-nous	-
22	283296		Clock Motor		Appelez-nous	-
23	294810		1 Req. Minute Timer		Appelez-nous	-
23	109225		Knob-clock (start & Stop Time) (2)		Appelez-nous	-
24	296585		Backguard Front-bottom		Appelez-nous	-
27	333146		Backguard Glass		Appelez-nous	-
28	326121		Cover-backguard Wire		Appelez-nous	-
29	319361		Support-backguard (lt. Or Rt.)		Appelez-nous	-
30	325472		Knob-infinite Switch (4 Req)		Appelez-nous	-
31	329933		Knob-thermostat		Appelez-nous	-
32	329935		Knob-selector Switch		Appelez-nous	-
