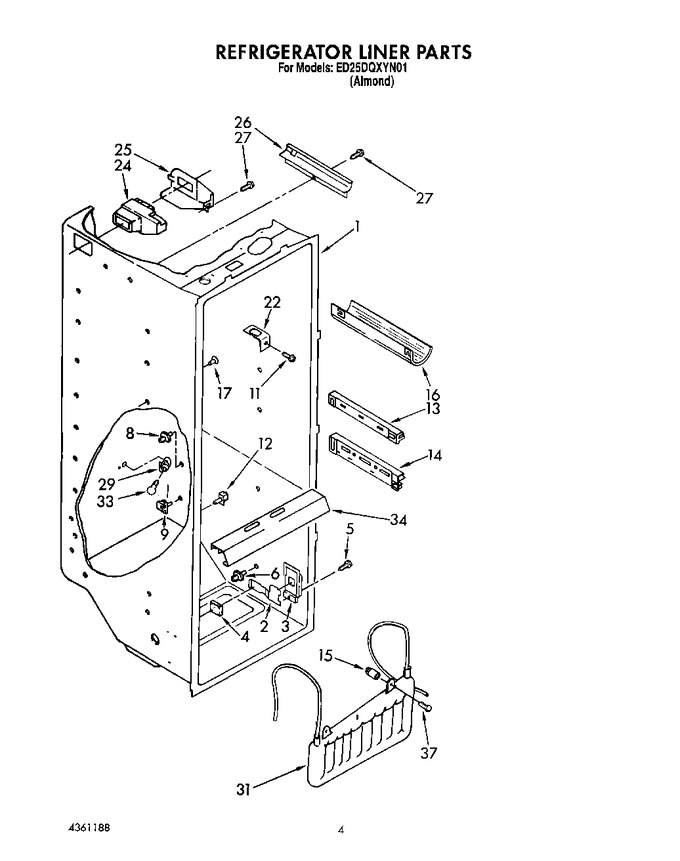

03 - Refrigerator Liner


04 - Refrigerator Shelf


05 - Freezer Liner


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Air Flow


12 - Control


13 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	985468		Escutcheon, Meat Pan Control		Appelez-nous	-
3	984102		Slide, Meat Pan Control				$ 5.02
4	992358		Pad, Foam		Appelez-nous	-
5	486214		Screw 8-15 X 1/2		Appelez-nous	-
6	WP2149540		Stud (2)   (Replaces: 2149540)				$ 10.96
8	4388538		Stud (6)   (Replaces: 1110718)			Immediately	$ 32.85
9	1115290		Stud (2)				$ 7.61
11	WP488488		Screw (2)   (Replaces: 489290)				$ 8.52
12	4388538		Stud (2)   (Replaces: 2147997)			Immediately	$ 32.85
13	1114633		Track, Shelf (left Side (3))				$ 23.63
13	1114632		Track, Shelf (right Side (3))				$ 23.36
14	1115265		Track, Shelf (left Side)				$ 25.12
14	1115264		Track, Shelf (right Side)				$ 21.37
15	4388538		Stud, Spacer (2)   (Replaces: 1110718)			Immediately	$ 32.85
16	2148695		Wine Rack		Appelez-nous	-
17	WP1114631		Support, Stud (32)   (Replaces: 1114631)				$ 10.83
22	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 36.10
24	WPW10151374		Air Diffuser Assembly   (Replaces: 2157403)			Immediately	$ 104.77
25	2152019		Cover, Air Diffuser				$ 90.33
26	2150331		Cover, Conduit				$ 25.62
27	W10759522		Screw, 8 X 3/4   (Replaces: 486298)				$ 8.24
29	4387478		Socket   (Replaces: 851067)			Immediately	$ 115.67
31	WP2256126		Reservoir   (Replaces: 2157465)				$ 177.29
33	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
34	1115330		Light Lens		Appelez-nous	-
37	488280		Screw (2)		Appelez-nous	-
