SELECT A DIAGRAM

01 - Chassis & Outer Case Assembly

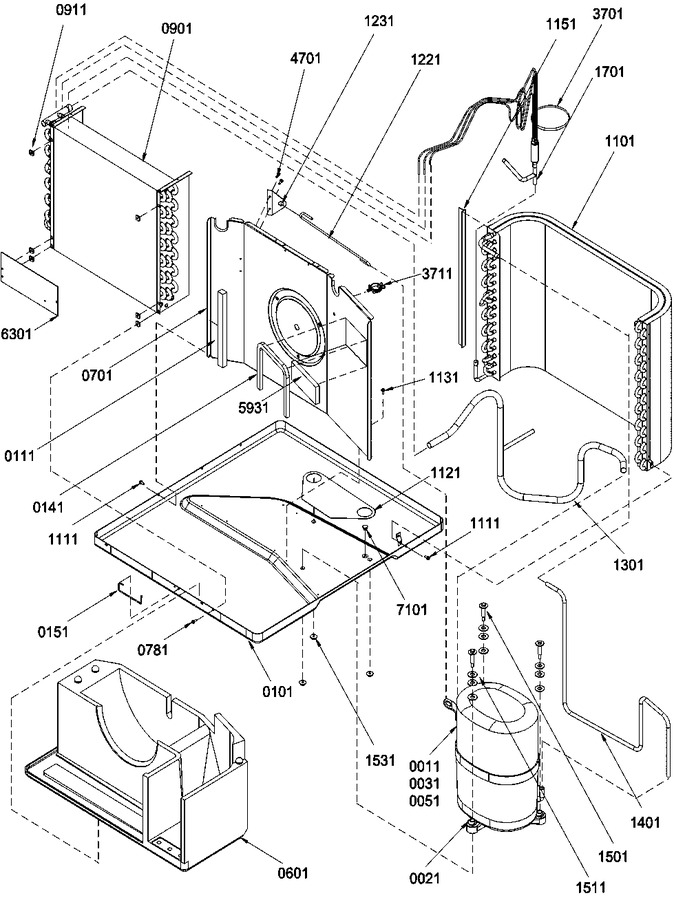

02 - Chassis Assembly


03 - Chassis Assembly


04 - Control Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	20091805		Compressor (h23b20)		Appelez-nous	-
21	B1315401		Grommet		Appelez-nous	-
31	10720801		Cover, Term		Appelez-nous	-
51	10720601		Gasket, Term. Cover		Appelez-nous	-
101	20067205		Basepan		Appelez-nous	-
111	10839712		Gasket		Appelez-nous	-
141	10839716		Gasket 1/2 By 3/8		Appelez-nous	-
151	20088701		Handle, Basepan		Appelez-nous	-
601	20067302		Scroll, Bottom		Appelez-nous	-
701	20067604		Pnl, Partition		Appelez-nous	-
781	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
901	20074801		Assy, Evaporator		Appelez-nous	-
911	M0586001		Screw		Appelez-nous	-
1101	20074102		Assy, Condenser		Appelez-nous	-
1111	WP693995		Screw, Sm Stl   (Replaces: M0245203)			Immediately	$ 7.55
1121	20106301		Pad, Protector		Appelez-nous	-
1131	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
1151	Y20065009		Seal Strip, Outer		Appelez-nous	-
1221	20093601		Tie, Compressor		Appelez-nous	-
1231	20093701		Bracket, Comp. Tie		Appelez-nous	-
1301	20095602		Weld, Suction Tube		Appelez-nous	-
1401	20094701		Tube, Discharge		Appelez-nous	-
1501	20109101		Bolt, Shoulder		Appelez-nous	-
1511	M0274071		Washer, Flat		Appelez-nous	-
1531	20103302		Nut, Flange		Appelez-nous	-
1701	20107101		Assy, Capillary		Appelez-nous	-
3701	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
3711	M0118702		Clip-guide		Appelez-nous	-
4701	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 8.76
5931	10839727		Gasket, Foam		Appelez-nous	-
6301	20237001		Baffle		Appelez-nous	-
7101	M0311109		Plug, Metal Hole		Appelez-nous	-
