01 - Blower Plenum

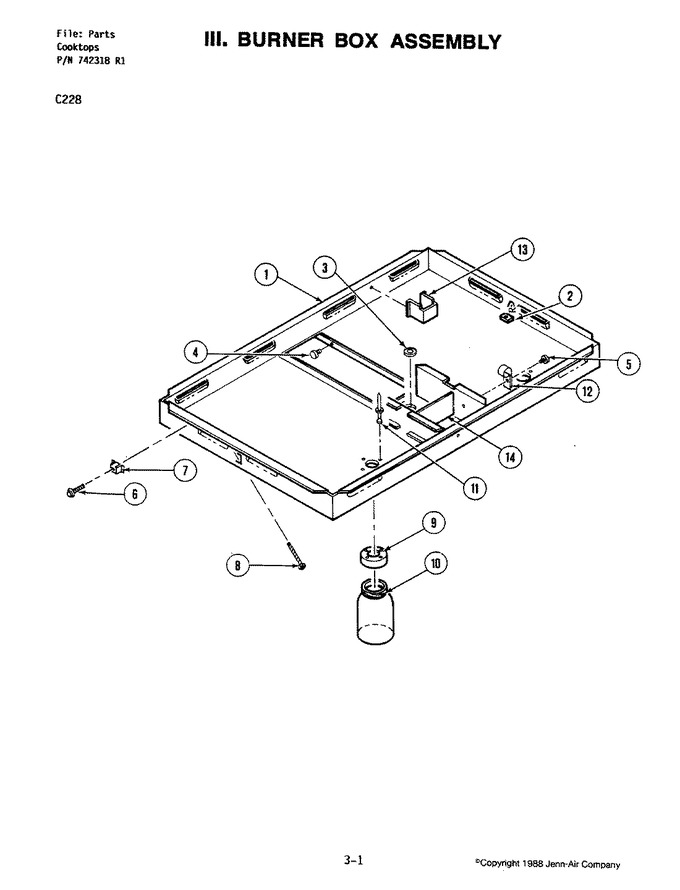

02 - Burner Box
03 - Escutcheon
04 - Top/grill Pan Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 701992 | Box, Burner | 1 |
|
- | ||||
| 2 | M0282009 | Nut,square (Replaces: Y707124) | 1 |
|
$ 14.07 | ||||
| 3 | Y707695 | Bushing | 1 |
|
- | ||||
| 4 | WPW10253196 | Screw (Replaces: Y707113) | 1 |
|
$ 4.62 | ||||
| 5 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 14.72 | |||
| 6 | WP90767 | Screw (Replaces: Y700502) | 1 |
|
Immediately | $ 8.25 | |||
| 7 | Y700503 | Clip, Retainer | 1 |
|
- | ||||
| 8 | Y707121 | Screw | 1 |
|
- | ||||
| 9 | Y707870 | Lid, Jar | 1 |
|
- | ||||
| 10 | WPY707869 | Jar, Drain (Replaces: Y707869) | 1 |
|
$ 71.67 | ||||
| 11 | WP210720 | Rivet, Jar Lid (Replaces: Y707128) | 1 |
|
$ 14.16 | ||||
| 12 | 712254 | Clamp, Cable | 1 |
|
- | ||||
| 13 | 703008 | Bracket, Top Support | 1 |
|
- | ||||
| 14 | 707746 | Insulator | 1 |
|
- |
