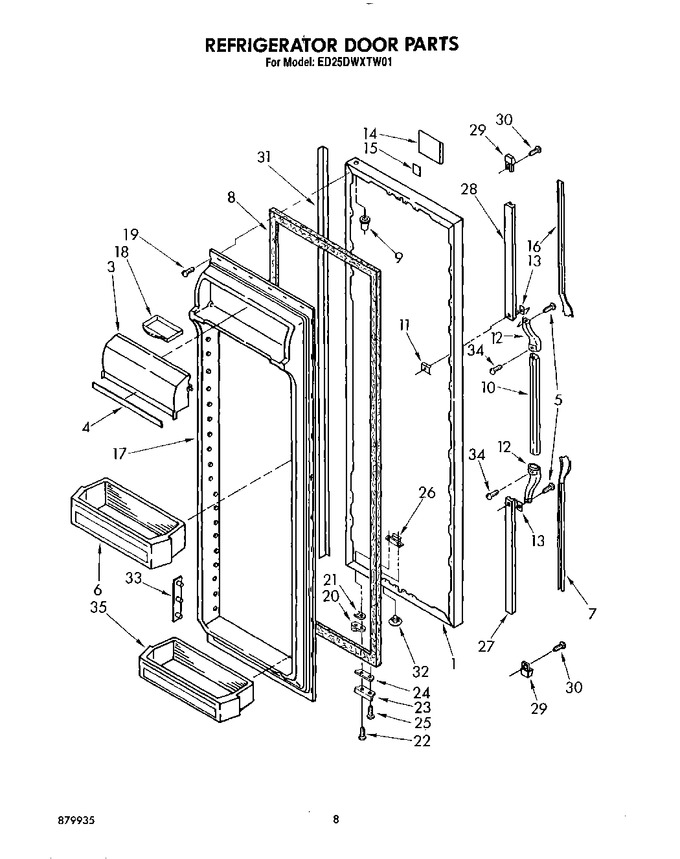

07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Air Flow


12 - Control


13 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1110642		Refrigerator Door (white)		Appelez-nous	-
1	1110645		Refrigerator Door (almond)		Appelez-nous	-
1	1110646		Refrigerator Door (toast)		Appelez-nous	-
1	1110647		Refrigerator Door (platinum)		Appelez-nous	-
1	1110644		Refrigerator Door (golden Harvest)		Appelez-nous	-
3	1115385		Door, Compartment		Appelez-nous	-
4	1110717		Trim, Compartment Door		Appelez-nous	-
5	WPW10141645		Screw, 8 X 1/2 (4)   (Replaces: 489084)				$ 8.05
6	1121334		Shelf Bin (2)		Appelez-nous	-
7	1119364		Insert, Handle (toast)		Appelez-nous	-
7	1119365		Insert, Handle (platinum)		Appelez-nous	-
7	1119363		Insert, Handle (almond)		Appelez-nous	-
7	1119361		Insert, Handle (white)		Appelez-nous	-
7	1119362		Insert, Handle (golden Harvest)		Appelez-nous	-
8	1110649		Door Gasket, Magnetic		Appelez-nous	-
9	509929		Cap, Hinge Sleeve		Appelez-nous	-
10	1118417		Handle, Center		Appelez-nous	-
11	941242		Screw Anchor (2)		Appelez-nous	-
12	1119359		End Cap, Center Handle		Appelez-nous	-
13	935075		Shim		Appelez-nous	-
14	1111555		Nameplate		Appelez-nous	-
15	991259		Tape Strip		Appelez-nous	-
16	1119376		Insert, Handle (toast)		Appelez-nous	-
16	1119375		Insert, Handle (almond)		Appelez-nous	-
16	1119374		Insert, Handle (golden Harvest)		Appelez-nous	-
16	1119373		Insert, Handle (white)		Appelez-nous	-
16	1119377		Insert, Handle (platinum)		Appelez-nous	-
17	1118241		Panel, Interior Door		Appelez-nous	-
18	520747		Tray, Butter		Appelez-nous	-
19	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
19	WP489069		Screw, 7 X 1/2 (30)   (Replaces: 489101)			Immediately	$ 8.40
20	4318165		Door Closer, Upper Cam   (Replaces: 1115905)			Immediately	$ 29.74
21	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.96
22	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
23	1115906		Bracket, Door Stop		Appelez-nous	-
24	988421		Shim		Appelez-nous	-
25	488549		Screw, 8 X 1/2		Appelez-nous	-
26	988402		Tap Plate		Appelez-nous	-
27	1119360		Retainer, Insert (bottom)		Appelez-nous	-
28	1119372		Retainer, Insert		Appelez-nous	-
29	941259		End Cap (2)		Appelez-nous	-
30	489075		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
31	1119062		Trim, Door		Appelez-nous	-
32	534927		Hole Plug (2)		Appelez-nous	-
33	1116986		Pin Plate (14)				$ 12.10
34	489022		Screw, 6-20 X 3/8 (4)		Appelez-nous	-
35	1121335		Shelf Bin (2)		Appelez-nous	-
