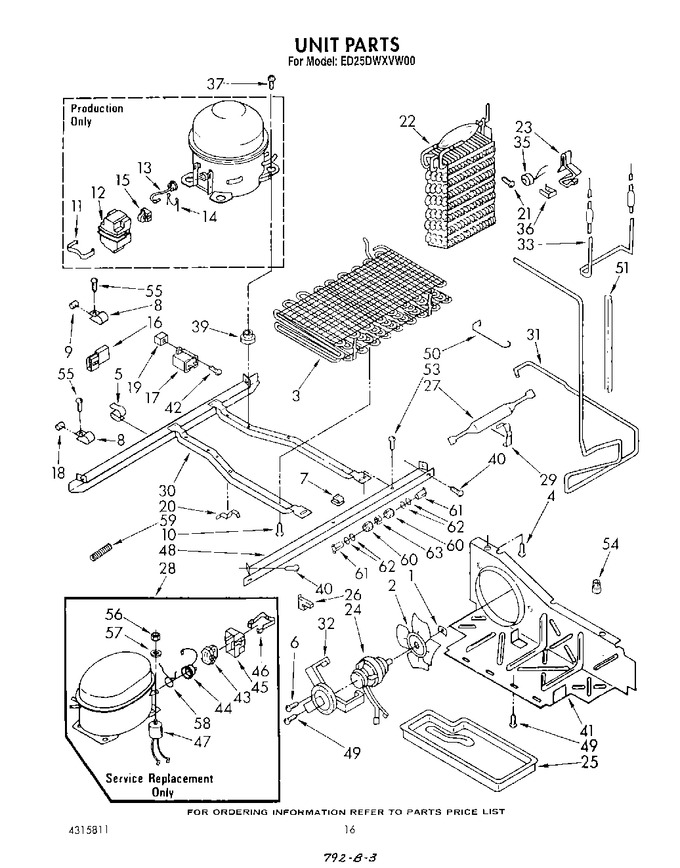

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.82
2	989524		Fan, Blade		Appelez-nous	-
3	1105640		Condenser Assembly		Appelez-nous	-
4	489050		Screw				$ 692.56
5	548745		Clip, Wire (2)		Appelez-nous	-
6	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 13.06
7	934011		Clip, Water Line (3)		Appelez-nous	-
8	510716		Tube Clamp		Appelez-nous	-
9	510769		Dampener		Appelez-nous	-
10	WP489069		Screw, 8-15 X 1/2 (4)   (Replaces: 488480)			Immediately	$ 7.86
11	943322		Spring, Relay Case		Appelez-nous	-
12	1105055		Case, Relay		Appelez-nous	-
13	1123749		Overload		Appelez-nous	-
14	943320		Overload Spring		Appelez-nous	-
15	1101014		Relay		Appelez-nous	-
16	1118850		Housing Plug		Appelez-nous	-
17	WPW10662129		Running, Capacitor   (Replaces: 1114291)			Immediately	$ 58.86
18	WP2158826		Dampener   (Replaces: 836075)				$ 1.73
19	509812		Screw Grommet		Appelez-nous	-
20	548744		Clip, Unit Cover (2)		Appelez-nous	-
21	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
22	1110668		Evaporator		Appelez-nous	-
23	1108431		Clamp (4)		Appelez-nous	-
24	833697		Motor, Fan   (Replaces: 1121292)			Immediately	$ 88.15
25	1110674		Tray, Evaporator		Appelez-nous	-
26	943647		Receptacle, Housing		Appelez-nous	-
27	W10843121		Drier   (Replaces: 1105550)			Immediately	$ 52.57
28	482982		Compressor (includes Items 43, 44, 45, 46, 47, 56, 57 & 58) (also Order 876765 Tube Kit)		Appelez-nous	-
29	548508		Clamp, Drier		Appelez-nous	-
30	2304904		Unit Mounting Frame   (Replaces: 1110670)		Appelez-nous	-
31	1114662		Exchanger, Heat		Appelez-nous	-
32	548695		Fan, Motor Bracket		Appelez-nous	-
33	1110669		Heater, Defrost		Appelez-nous	-
35	WP4387499		Bi-metal, Defrost   (Replaces: 1108199)				$ 120.86
36	513584		Clamp		Appelez-nous	-
37	876811		Screw, 1/4-28 X 1   (Replaces: 489116)				$ 7.42
39	876811		Grommet (4)   (Replaces: 1114359)				$ 7.42
40	489340		Screw   (Replaces: 488683)		Appelez-nous	-
41	1110662		Air Baffle		Appelez-nous	-
42	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 14.06
43	WP2262181		Relay   (Replaces: 1108143)				$ 122.65
44	483054		Overload		Appelez-nous	-
45	1105015		Cover, Terminal		Appelez-nous	-
46	938384		Strap		Appelez-nous	-
47	482996		Capacitor		Appelez-nous	-
48	2305374		Unit Mounting Rail   (Replaces: 1110672)				$ 84.67
49	488624		Screw		Appelez-nous	-
50	1110663		Guard, Fan		Appelez-nous	-
51	1114634		Sleeve		Appelez-nous	-
53	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
54	227991		Wire Connector		Appelez-nous	-
55	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 21.16
56	489142		Nut		Appelez-nous	-
57	489143		Washer		Appelez-nous	-
58	1114190		Overload Spring		Appelez-nous	-
59	983659		Spring, Tube Forming		Appelez-nous	-
60	WP245183		Nut, Ball Sleeve   (Replaces: 487857)				$ 7.79
61	4387491		Insert, Tube   (Replaces: 841707)				$ 8.23
62	488794		``o`` Ring Seal (4)		Appelez-nous	-
63	876764		Valve, Access(3/16``)			Immediately	$ 91.35
63	978028		Valve, Access (1/2)		Appelez-nous	-
63	978029		Valve Access (5/8``)				$ 93.85
63	978030		Valve, Access (3/4``)				$ 130.71
63	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
63	WP4211117		Union   (Replaces: 489098)				$ 9.96
63	978026		Valve, Access (5/16``)			Immediately	$ 128.09
63	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
