Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 327320 Screw 10-7/16`` Appelez-nous -
2 70588 Clip Appelez-nous -
3 326122 Wire Cover-backguard Appelez-nous -
4 5500-200 4 Req. All 2414, 24240a Models   (Replaces: 320944) In-Stock Immediately $ 54.85

4 320945 Lt., Rt. Rear & Lt. Frt. All 2414, 24241a & 2a Models Appelez-nous -
4 5500-200 Rt. Front All 2414, 24241a & 2a Mod.   (Replaces: 320946) In-Stock Immediately $ 54.85

5 320927 Selector Switch Appelez-nous -
6 327326 Indicator Light-surface Appelez-nous -
7 326871 Indicator Light-oven Appelez-nous -
8 320937 24140a & 1a, 24240a Models Appelez-nous -
8 321958 24142a & 24241a Models Appelez-nous -
9 326285 Left Appelez-nous -
9 326284 Right Appelez-nous -
10 327107 Left Appelez-nous -
10 327106 Right Appelez-nous -
11 329382 Screw 6-20x3/8`` Appelez-nous -
12 326974 Screw 10abx1/2`` Appelez-nous -
13 322966 Knob-infinite Control (4 Req) Special Order $ 44.69

14 326671 Knob-thermostat Appelez-nous -
15 325677 Lens-indicator Light (2 Req) Appelez-nous -
16 326947 Knob-selector Switch Appelez-nous -
17 78565 Screw 8-32x3/16`` Appelez-nous -
18 328413 Toast Appelez-nous -
18 326640 White Appelez-nous -
18 329338 Platinum Appelez-nous -
18 326641 Almond Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

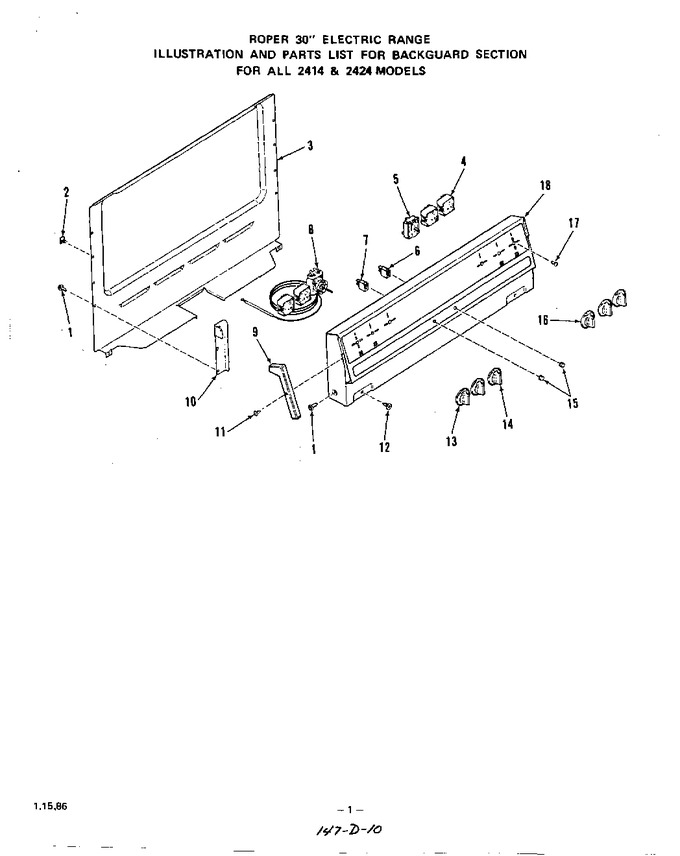

Diagram for 2414W0A
