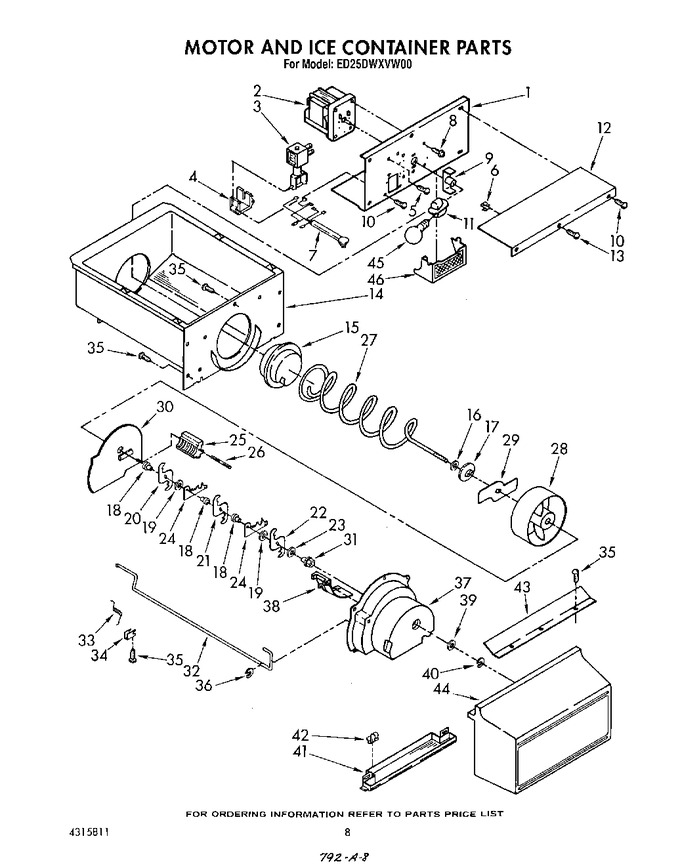

06 - Motor And Ice Container


07 - Section


08 - Refrigerator Door , Freezer Door


09 - Dispenser Front


10 - Unit


11 - Air Flow


12 - Control


13 - Ice Maker , Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1118386		Bracket, Motor		Appelez-nous	-
2	WP2188242		Motor, Dispenser   (Replaces: 1119024)				$ 387.12
3	WP2152713		Soleniod Assembly   (Replaces: 1119027)				$ 250.11
4	W10850503		Guide, Solenoid   (Replaces: 1119025)				$ 10.87
5	487356		Screw (2)		Appelez-nous	-
6	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 8.14
7	1119217		Wiring Assembly, Ice Dispenser		Appelez-nous	-
8	303776		Screw, 8-32 X 5/16 (4)   (Replaces: 488906)		Appelez-nous	-
9	WPW10169511		Coupling, Motor   (Replaces: 983663)				$ 24.51
10	WP489478		Screw   (Replaces: 489242)				$ 8.18
10	WP681414		Screw (repair)   (Replaces: 489254)			Immediately	$ 8.47
11	4387478		Socket, Light   (Replaces: 851067)			Immediately	$ 115.67
12	1115339		Cover, Motor		Appelez-nous	-
13	00487294		Screw, 8-32 X 3/8   (Replaces: 487294)				$ 175.09
14	WPW10670845		Ice Container   (Replaces: 1115372)				$ 199.19
15	W10749708		Coupling, Conveyor   (Replaces: 983668)				$ 27.44
16	1118480		Stop, Cone		Appelez-nous	-
17	1119074		Feeder Cone		Appelez-nous	-
18	WP1119005		Spacer, Step (3)   (Replaces: 1119005)				$ 11.74
19	WP1119007		Spacer, Flat (2)   (Replaces: 1119007)				$ 14.77
20	W10278731		Blade, Rotary   (Replaces: 1119006)				$ 90.87
21	W10278732		Blade, Rotary   (Replaces: 1119012)				$ 91.00
22	W10278733		Blade, Rotary   (Replaces: 1119013)				$ 91.00
23	489235		Washer, Plain				$ 8.05
24	1119009		Blade, Fixed (2)				$ 72.21
25	2157405		Block, Blade   (Replaces: 1119010)				$ 22.33
26	489229		Roll Pin				$ 48.47
27	W10422851		Conveyor   (Replaces: 1119003)				$ 174.14
28	4388736		Drum   (Replaces: 1118471)				$ 96.97
29	4388736		Drive Bar   (Replaces: 1118470)				$ 96.97
30	W10852691		Floating Baffle   (Replaces: 1119004)			Immediately	$ 34.85
31	WP1119018		Nut, Bearing   (Replaces: 1119018)				$ 7.90
32	1119019		Control Arm		Appelez-nous	-
33	1119020		Spring, Return				$ 19.13
34	1119021		Retainer Clip, Rod				$ 10.96
35	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 11.26
36	489272		Retainer Ring		Appelez-nous	-
37	WPW10185018		Housing, Crusher   (Replaces: 1119016)				$ 130.65
38	WP1119017		Deflector, Ice   (Replaces: 1119017)				$ 7.95
39	489234		Washer, Plain				$ 14.04
40	WP489236		Retainer Ring   (Replaces: 489236)			Immediately	$ 12.78
41	1121387		Tray, Ice Chips		Appelez-nous	-
42	1121386		Clip, Tray (2)		Appelez-nous	-
43	1119043		Deflector, Ice Container		Appelez-nous	-
44	1119002		Front Cover, Ice Container		Appelez-nous	-
45	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
46	983359		Light Lens, Dispenser		Appelez-nous	-
