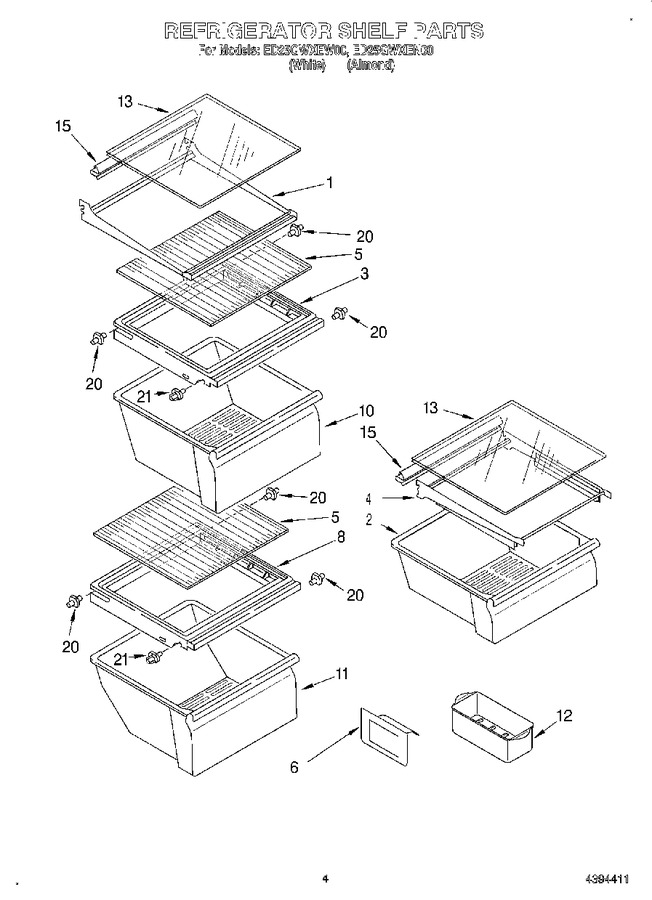

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2163572		Shelf, Cantilever (3)		Appelez-nous	-
2	W11497323		Snack Bin   (Replaces: 2179277)				$ 234.84
3	W10508993		Cover, Crisper   (Replaces: 2189610)				$ 305.85
4	2179443		Snack Bin Shelf & Slide Assembly				$ 116.68
5	W10864399		Glass, Cover (2)   (Replaces: 2179259)				$ 232.03
6	2179350		Deflector				$ 85.89
8	W10508993		Cover, Meat Pan   (Replaces: 2189601)				$ 305.85
10	WP2188661		Pan, Crisper   (Replaces: 2179275)			Immediately	$ 162.07
11	WP2188664		Meat Pan   (Replaces: 2179276)			Immediately	$ 92.70
12	W10136387A		Egg Bin   (Replaces: 2164333)				$ 19.54
13	2175987		Glass, Shelf		Appelez-nous	-
15	2170621		Reflector		Appelez-nous	-
20	4388538		Shelf Stud   (Replaces: 1110718)			Immediately	$ 32.85
21	4388539		Shelf Stud   (Replaces: 2172943)				$ 22.28
