01 - Blower Plenum
02 - Burner Box
03 - Control Panel
04 - Main Top
New Model Search:

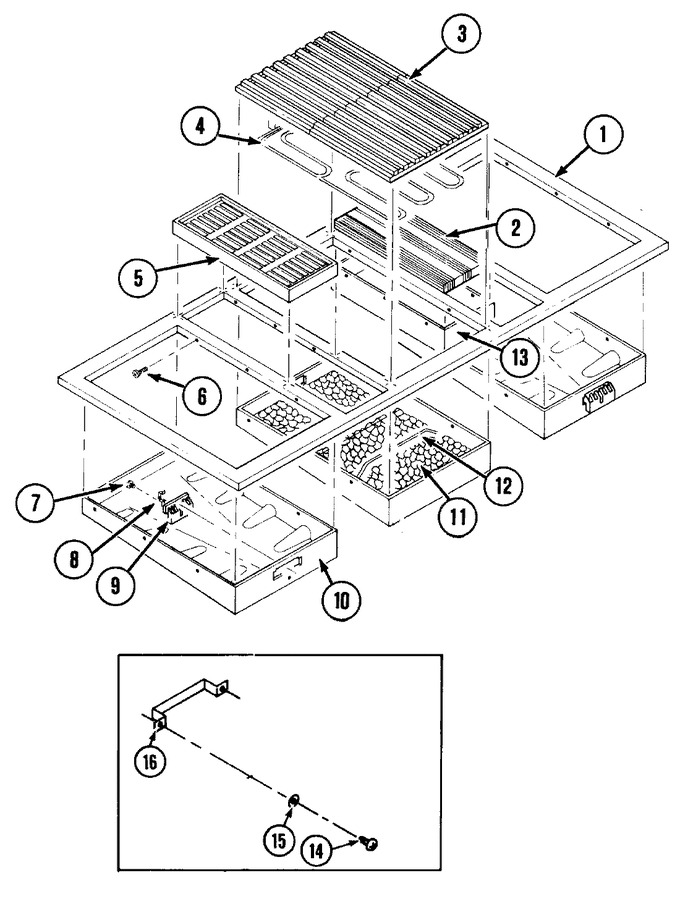

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE81-06343A | Top (Replaces: 701852) | 1 |
|
$ 179.43 | ||||
| 2 | Y700789 | Block, Chopping | 1 |
|
- | ||||
| 3 | 707886 | Grate | 1 |
|
- | ||||
| 4 | WP5700M426-60 | Element, Grill (Replaces: Y700452) | 1 |
|
$ 445.97 | ||||
| 5 | DE81-04768A | Grill, Air (Replaces: 700667) | 1 |
|
$ 109.33 | ||||
| 6 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 14.72 | |||
| 7 | WP489128 | Screw (Replaces: Y707341) | 1 |
|
$ 11.40 | ||||
| 8 | 715121 | Clip | 1 |
|
- | ||||
| 8 | Y702699 | Clip | 3 |
|
- | ||||
| 9 | WPY702434 | Receptacle (Replaces: 702783) | 3 |
|
Immediately | $ 112.71 | |||
| 9 | Y715120 | Receptacle | 1 |
|
$ 24.18 | ||||
| 9 | WPY702434 | Receptacle (ceramic) (Replaces: Y702434) | 3 |
|
Immediately | $ 112.71 | |||
| 10 | Y702042 | Kit, Wire | 1 |
|
- | ||||
| 10 | Y701953 | Pan, Grill (w/brackets) | 1 |
|
- | ||||
| 10 | 701954 | Pan, Grill (rev. W/brackets) | 1 |
|
- | ||||
| 10 | 701955 | Pan, Grill (lt) | 1 |
|
- | ||||
| 10 | Y701956 | Pan, Grill (rt) | 1 |
|
- | ||||
| 10 | Y702043 | Kit, Wire | 1 |
|
- | ||||
| 10 | WP5708M007-60 | Wire, Yellow (Replaces: Y700848) | 1 |
|
$ 136.77 | ||||
| 10 | WP5708M008-60 | Wire, Red (Replaces: Y700849) | 1 |
|
$ 101.72 | ||||
| 10 | WP5708M081-60 | Wire, Black (Replaces: Y700850) | 1 |
|
$ 39.22 | ||||
| 10 | Y701490 | Wire, Black | 1 |
|
- | ||||
| 10 | Y701491 | Wire, Red | 1 |
|
- | ||||
| 10 | Y701492 | Wire, Yellow | 1 |
|
- | ||||
| 10 | WP5708M005-60 | Wire, Blue (Replaces: Y701540) | 1 |
|
$ 100.85 | ||||
| 10 | Y701899 | Wire, Blue | 1 |
|
- | ||||
| 10 | DE81-07493A | Kit, Wire (Replaces: 701937) | 1 |
|
$ 220.43 | ||||
| 11 | WP5708M008-60 | Wire, Red (Replaces: Y712019) | 3 |
|
$ 101.72 | ||||
| 11 | Y712017 | Wire, Black | 3 |
|
- | ||||
| 11 | Y712035 | Kit, Wire | 3 |
|
- | ||||
| 11 | 708929 | Plate, Rock | 1 |
|
- | ||||
| 11 | Y712015 | Wire, Red | 3 |
|
- | ||||
| 11 | WP5708M081-60 | Wire, Black (Replaces: Y712018) | 3 |
|
$ 39.22 | ||||
| 11 | WP5708M007-60 | Wire, Yellow (Replaces: Y712020) | 3 |
|
$ 136.77 | ||||
| 11 | WP5708M005-60 | Contact/wire Assy. (blu-lt) (Replaces: Y712029) | 3 |
|
$ 100.85 | ||||
| 11 | Y712030 | Wire, Blue | 3 |
|
- | ||||
| 11 | 712033 | Kit, Wire | 3 |
|
- | ||||
| 11 | 712022K | Kit, Wire (Replaces: Y712034) | 3 |
|
$ 226.73 | ||||
| 11 | Y712014 | Wire, Yellow | 3 |
|
- | ||||
| 12 | 700819 | Support, Rock Plate | 1 |
|
$ 71.81 | ||||
| 12 | WP5708M007-60 | Wire, Yellow (Replaces: Y712201) | 8 |
|
$ 136.77 | ||||
| 12 | Y712439 | Wire, Brown | 8 |
|
- | ||||
| 12 | Y712431 | Kit, Wire | 8 |
|
- | ||||
| 12 | WP5708M008-60 | Wire, Violet (Replaces: Y712202) | 8 |
|
$ 101.72 | ||||
| 12 | Y712199 | Wire, Brown | 8 |
|
- | ||||
| 12 | Y712197 | Wire, Brown | 8 |
|
- | ||||
| 12 | Y712203 | Wire, Violet | 8 |
|
- | ||||
| 12 | Y712438 | Kit, Wire | 8 |
|
$ 137.49 | ||||
| 12 | Y712200 | Wire, Yellow | 8 |
|
- | ||||
| 12 | Y712208 | Plug (lower) | 8 |
|
- | ||||
| 13 | 701991 | Box, Utensil | 1 |
|
- | ||||
| 14 | WP59002061 | Screw (Replaces: Y707172) | 3 |
|
$ 8.18 | ||||
| 15 | Y707664 | Washer | 3 |
|
- | ||||
| 16 | Y702698 | Bracket | 3 |
|
- |
