02 - Cabinet


03 - Refrigerator Liner


04 - Refrigerator Shelf


05 - Freezer Liner


06 - Freezer Interior


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Air Flow


12 - Control


13 - Icemaker, Lit/optional

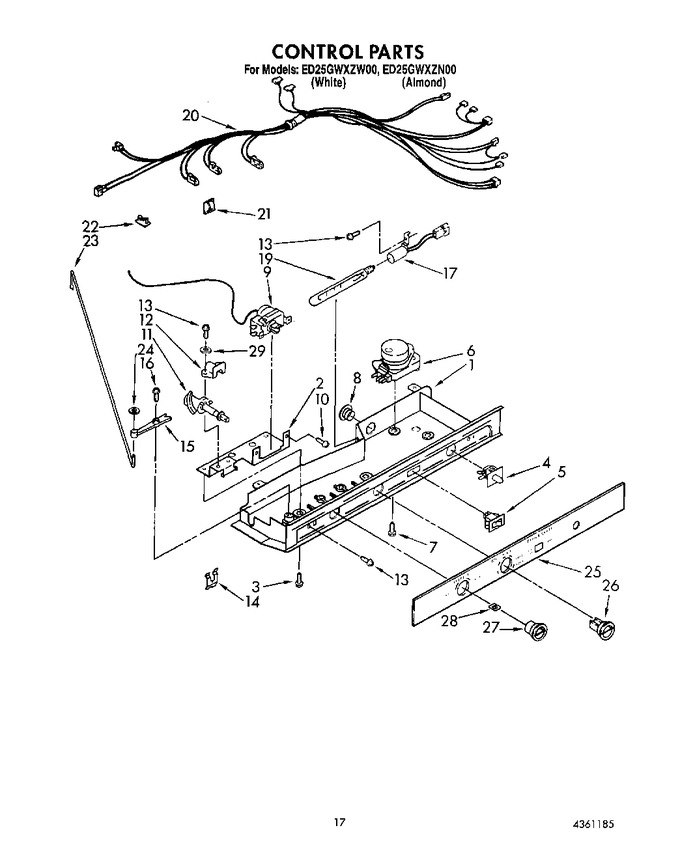

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2152113		Control Box		Appelez-nous	-
2	1110629		Mounting Bracket		Appelez-nous	-
3	489190		Screw (2)		Appelez-nous	-
4	WP2149705		Light Switch   (Replaces: 1123922)			Immediately	$ 40.40
5	1106601		Switch, Toggle		Appelez-nous	-
6	CC901		Defrost Timer, (10 Hr.)   (Replaces: 1127570)			Immediately	$ 58.27
7	489392		Screw (2)   (Replaces: 489192)				$ 13.35
8	940014		Hole Plug				$ 18.33
9	WP2198202		Thermostat Assembly   (Replaces: 1115244)			Immediately	$ 78.43
10	WP965173		Screw, 8 X 3/8 (2)   (Replaces: 487869)			Immediately	$ 10.72
11	1110566		Cam Assembly		Appelez-nous	-
12	1110560		Bearing Body				$ 10.76
13	WP489478		Screw   (Replaces: 489242)				$ 7.75
14	938439		Retainer, Damper		Appelez-nous	-
15	1110559		Pivot Arm				$ 8.35
16	627068		Screw				$ 12.12
17	4387478		Light Socket   (Replaces: 851067)			Immediately	$ 110.16
19	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
20	2154838		Control Box Harness		Appelez-nous	-
21	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 7.75
22	1115375		Clip, Wiring				$ 11.15
23	1123960		Connecting Rod				$ 6.81
24	489285		Fastener, Push-on		Appelez-nous	-
25	2148231		Escutcheon Control		Appelez-nous	-
26	1110554		Knob, Thermostat		Appelez-nous	-
27	1110562		Knob, Air Control		Appelez-nous	-
28	837444		Knob, Retainer		Appelez-nous	-
29	489203		Spring Washer		Appelez-nous	-
