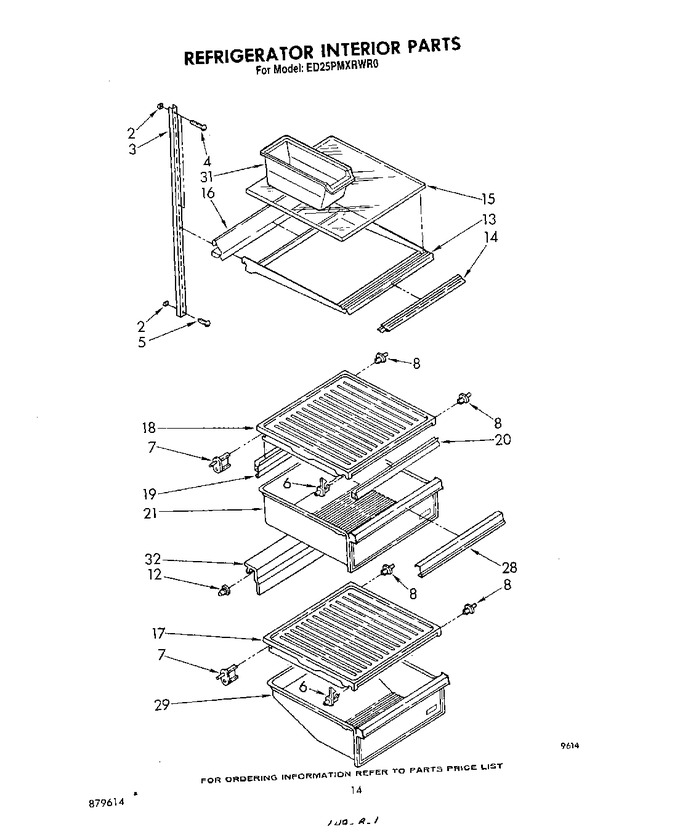

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	520965		Screw, Support Ladder				$ 31.35
3	934264		Shelfladder (2)		Appelez-nous	-
4	488357		Screw, 8 X 1-1/4		Appelez-nous	-
5	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
5	488980		Screw (repair)		Appelez-nous	-
6	984779		Shelf, Stud		Appelez-nous	-
7	937515		Stud, Shelf		Appelez-nous	-
8	208500		Shelf, Stud		Appelez-nous	-
12	512900		Stud		Appelez-nous	-
13	936787		Shelf, Cantilever		Appelez-nous	-
14	849021		Shelf Trim, Cantilever		Appelez-nous	-
15	1108782		Glass, Cantilever Shelf		Appelez-nous	-
16	849028		Reflector, Cantilever		Appelez-nous	-
17	1108716		Pan Slide & Cover (2)		Appelez-nous	-
18	1111885		Pan Slide & Cover		Appelez-nous	-
19	987420		Crisper Gasket Rear		Appelez-nous	-
20	987419		Crisper Gasket Front		Appelez-nous	-
21	1111883		Pan Crisper (2)		Appelez-nous	-
28	988255		Overlay, (3) Front Cover		Appelez-nous	-
29	1111881		Pan, Meat		Appelez-nous	-
31	WP982704		Container, Utility   (Replaces: 1108734)				$ 32.55
32	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
32	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
32	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
32	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
32	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
32	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
32	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
32	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
32	984233		Cover, Reservoir		Appelez-nous	-
32	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
32	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
32	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
32	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
32	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
32	833938		Kit, Terminal Connector				$ 8.47
32	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
32	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
32	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
32	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
32	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
32	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
32	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
32	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
32	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
32	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
32	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
32	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	LIT1111893		Guide, Use & Care		Appelez-nous	-
	285363		Xenamel, Toast (13 Oz. Spray Can)				$ 50.09
	LIT879614		List, Parts		Appelez-nous	-
	LIT1111895		Energy Label		Appelez-nous	-
	LIT1105270		Service & Wiring Sheet		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
