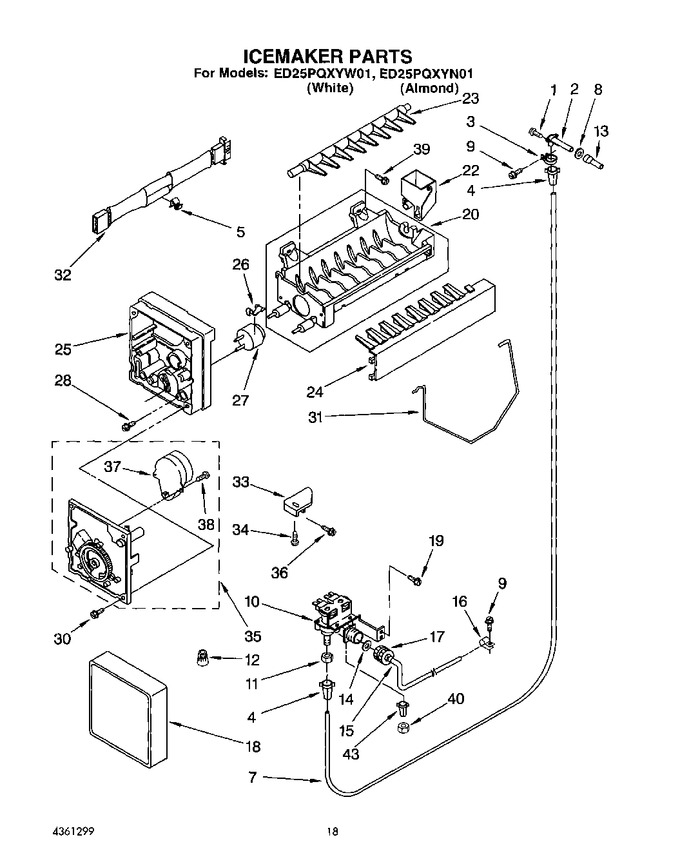

12 - Ice Maker


13 - Control, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 8.05
2	WP2196157		Fitting, Water Tube   (Replaces: 836489)			Immediately	$ 12.59
3	WP488878		Clamp, Tube   (Replaces: 488878)				$ 12.18
4	4387491		Insert, Tube   (Replaces: 841707)				$ 8.23
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 11.10
7	W10823511		Tube, Water   (Replaces: 653415)			Immediately	$ 32.41
8	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 10.43
9	WP489478		Screw   (Replaces: 489242)				$ 8.18
10	4318046		Valve, Solenoid   (Replaces: 628295)			Immediately	$ 92.87
11	WP627018		Nut, Compression   (Replaces: 627018)				$ 11.51
12	850145		Connector, Wire		Appelez-nous	-
13	2155064		Tube, Water Inlet		Appelez-nous	-
14	628337		Washer		Appelez-nous	-
15	627860		Tube, Inlet Valve		Appelez-nous	-
16	510716		Clamp Tube		Appelez-nous	-
17	537588		Nut, Valve		Appelez-nous	-
18	628355		Cover		Appelez-nous	-
19	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488649)				$ 22.22
20	WPW10190929		Mold & Heater Assembly (also Order 542638 Silicone Grease)   (Replaces: 628228)				$ 233.15
22	WP628356		Cup-water Fill   (Replaces: 628356)				$ 53.75
23	WP627843		Ejector   (Replaces: 627843)				$ 87.78
24	WP2182124		Ice Stripper   (Replaces: 627788)				$ 90.35
25	WP2195914		Support   (Replaces: 627790)				$ 109.80
26	WP2315522		Retainer, Thermostat   (Replaces: 627796)				$ 11.60
27	WP627985		Thermostat (also Order 542369 Cement Alumilastic)   (Replaces: 627985)				$ 114.64
28	8533917		Screw   (Replaces: 489322)				$ 14.04
30	WP681249		Screw, 8-18 X 11/16   (Replaces: 489276)			Immediately	$ 8.25
31	W11807379		Shut Off Arm   (Replaces: 628187)			Immediately	$ 63.21
32	WP2187464		Harness, Wiring   (Replaces: 628256)				$ 130.80
33	W11500948		Bracket   (Replaces: 628320)			Immediately	$ 33.78
34	489365		Screw, 8-32 X 27/64		Appelez-nous	-
35	W10190935		Module Assembly (includes Items 37 & 38)   (Replaces: 628366)			Immediately	$ 110.07
36	486214		Screw 8-15 X 1/2		Appelez-nous	-
37	W10190935		Motor   (Replaces: 628258)			Immediately	$ 110.07
38	489136		Screw (3-24 X 23/64)				$ 10.80
39	WP488163		Screw (2)   (Replaces: 488208)				$ 7.92
40	1129179		Nut, Compression		Appelez-nous	-
43	1129177		Insert, Tube				$ 5.27
100	4317943		Complete Icemaker Assembly   (Replaces: 4211173)			Immediately	$ 183.45
