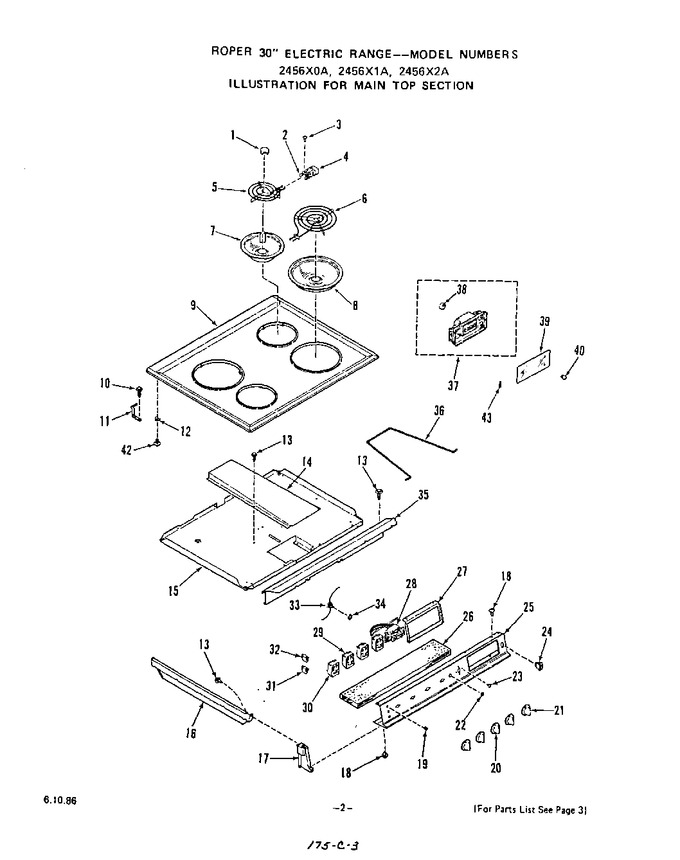

03 - Main Top


04 - Lit/optional Porcelain Pan And Chro


05 - Body


06 - Oven Door


07 - Wire Harness , Rear Main Top Fille


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318586		Medallion		Appelez-nous	-
2	318872		Clip-terminal Block		Appelez-nous	-
3	299632		Screw 7-32x5/16``		Appelez-nous	-
4	330031		Block-terminal W/wires   (Replaces: 318960)			Immediately	$ 17.93
5	PS15-4BK		Element-surface 6`` (lt Front & Rt. Rear)   (Replaces: 325510)			Immediately	$ 35.96
6	PS26-4BK		Element-surface 8`` (lt. Rear & Rt. Front)   (Replaces: 325506)			Immediately	$ 40.46
7	WPW10196406		Bowl-burner 6``   (Replaces: 296481)			Immediately	$ 12.05
8	WPW10196405		Bowl-burner 8`` Note: For Optional Procelain Pan And Chrome Ring Kit, See Below.   (Replaces: 304969)			Immediately	$ 15.56
9	334866		2456x 1a & 2a Models		Appelez-nous	-
9	330376		2456xoa Models		Appelez-nous	-
10	327320		Screw 10-16x7/16``		Appelez-nous	-
11	331514		Left 2456x0a Models		Appelez-nous	-
11	334843		Right 2456x1a & 2a Models		Appelez-nous	-
11	334844		Left 2456x1a & 2a Models		Appelez-nous	-
11	331513		Right 2456x0a Models		Appelez-nous	-
12	335161		Bracket-hinge 2456x1a,2a Models		Appelez-nous	-
13	327320		Screw 10-16x7/16``		Appelez-nous	-
14	308830		Cover-lock Rod		Appelez-nous	-
15	330371		Bottom-burner Box		Appelez-nous	-
16	330343		2456x0a Models		Appelez-nous	-
16	334877		2456x1a, 2a Models		Appelez-nous	-
17	330344		Left		Appelez-nous	-
17	330345		Right		Appelez-nous	-
18	316849		Screw-10-32x1/2``		Appelez-nous	-
19	331705		Lens-indicator Light		Appelez-nous	-
20	322966		Knob-infinite				$ 44.69
21	331297		Knob-thermostat		Appelez-nous	-
22	87403		Nut-round		Appelez-nous	-
23	78565		Screw 8-32x3/16``		Appelez-nous	-
24	334649		2456x1a, 2a Models		Appelez-nous	-
24	334564		2456x0a Models		Appelez-nous	-
25	331355		Panel-control		Appelez-nous	-
26	331071		Insulation		Appelez-nous	-
27	330337		Bracket-clock		Appelez-nous	-
28	331054		Thermostat		Appelez-nous	-
29	324608		Switch-infinite Lt. Front & Rt. Rear		Appelez-nous	-
30	324609		Switch-infinite Lt. Rear & Rt. Front		Appelez-nous	-
31	331716		Light-indicator (surface & Clean)		Appelez-nous	-
32	331717		Light-indicator (oven)		Appelez-nous	-
33	305928		Switch-momentary		Appelez-nous	-
34	236129		Nut-hex		Appelez-nous	-
35	330354		Cover-wire		Appelez-nous	-
36	320725		Rod-main Top Support		Appelez-nous	-
37	330401		Clock		Appelez-nous	-
38	327309		Motor-clock		Appelez-nous	-
39	330403		Glass-clock		Appelez-nous	-
40	109225		Knob-clock (start & Stop Time)		Appelez-nous	-
40	294810		Minute Minder		Appelez-nous	-
42	286628		Screw 10-32x5/16``		Appelez-nous	-
43	335202		2456x2a Models		Appelez-nous	-
43	335073		Clip-clock Bezel		Appelez-nous	-
43	331334		2456x0a, 1a Models		Appelez-nous	-
	335191		Xlist-repair Parts		Appelez-nous	-
