SELECT A DIAGRAM

02 - Power Lock


03 - Main Top


04 - Lit/optional Porcelain Pan And Chro


05 - Body


06 - Oven Door


07 - Wire Harness , Rear Main Top Fille

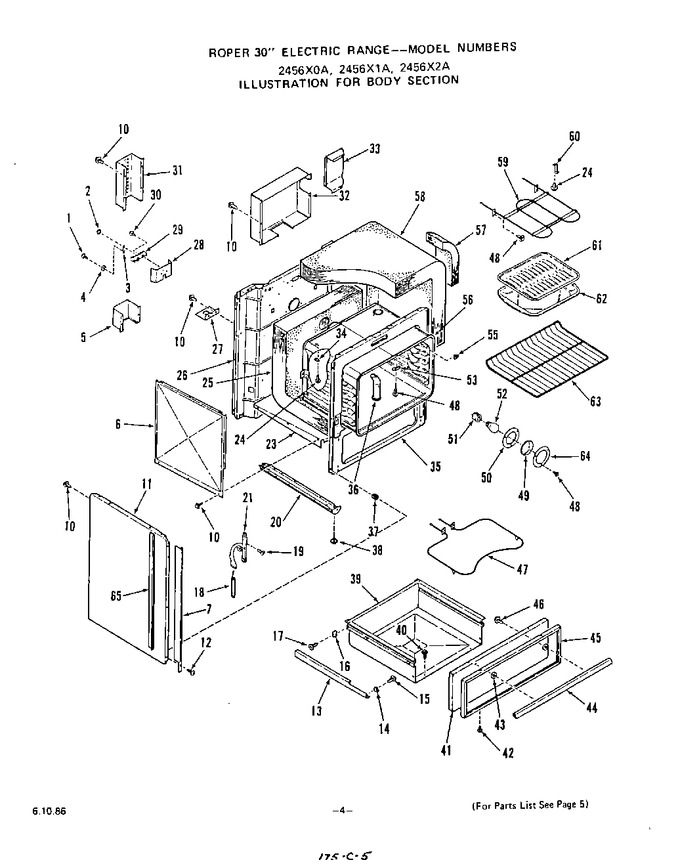

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313191		Screw 10-32x7/16``		Appelez-nous	-
2	97816		Nut-hex 10-32		Appelez-nous	-
3	327255		Ground Strap		Appelez-nous	-
4	299425		Washer		Appelez-nous	-
5	327258		Wire Shield-lower		Appelez-nous	-
6	313284		Retainer-insulation (lt. Or Rt.)		Appelez-nous	-
7	330340		Left		Appelez-nous	-
7	330341		Right		Appelez-nous	-
10	327320		Screw 10-16x7/16``		Appelez-nous	-
11	326102		Body Side (lt. Or Rt.) (black)		Appelez-nous	-
12	326974		Screw 10ab		Appelez-nous	-
13	311441		Support-storage Drawer (lt. Or Rt.)		Appelez-nous	-
14	281914		Slide Block-front (lt. Or Rt.)		Appelez-nous	-
15	295849		Screw 10-32x17/32``		Appelez-nous	-
16	281913		Slide Block-rear (lt. Or Rt.)		Appelez-nous	-
17	DE81-02123A		Screw 8 - 32 X 3/8``   (Replaces: 102563)				$ 1.66
18	326965		Spring-oven Door (lt. Or Rt.)		Appelez-nous	-
19	331704		Screw 10-32x5/8``		Appelez-nous	-
20	336546		2456x2a Models		Appelez-nous	-
20	334811		2456x0a, 1a Models		Appelez-nous	-
21	326012		Right		Appelez-nous	-
21	326013		Left		Appelez-nous	-
23	313281		Insulation Retainer-bottom		Appelez-nous	-
24	327320		Screw 10-16x7/16``		Appelez-nous	-
25	308861		Insulation-oven Bottom & Back (1 Piece)		Appelez-nous	-
26	330675		Main Back		Appelez-nous	-
27	327259		Range Service Mounting Plate		Appelez-nous	-
28	327242		Insulator-service Cord		Appelez-nous	-
29	290105		Junction Block		Appelez-nous	-
30	313190		Screw 10-32x1``		Appelez-nous	-
31	327235		Wire Shield-upper		Appelez-nous	-
32	333128		Shield-upper Wire		Appelez-nous	-
33	327808		Wire Shield		Appelez-nous	-
34	237762		Plate-thermostat Bulb Cover		Appelez-nous	-
35	331587		Front Frame		Appelez-nous	-
36	330735		Vent Tube		Appelez-nous	-
38	326052		Leg Leveler (4 Req)		Appelez-nous	-
39	296150		Storage Drawer		Appelez-nous	-
40	327320		Screw 10-16x7/16``		Appelez-nous	-
41	326081		Front Panel-storage Drawer		Appelez-nous	-
42	327621		Screw 6-20x3/8``		Appelez-nous	-
43	DE81-05147A		Spacer, Door Handle   (Replaces: 107158)				$ 205.79
44	292240		Handle		Appelez-nous	-
45	330120		Frame-storage Drawer Front Panel		Appelez-nous	-
46	295850		Screw 10 - 32 X 7/16``		Appelez-nous	-
47	WG02F05414		240 Volt   (Replaces: 325883)			Immediately	$ 111.99
47	326364		208 Volt (optional)		Appelez-nous	-
48	327320		Screw 10-.6x7/16``		Appelez-nous	-
49	114989		Lens-oven Lamp		Appelez-nous	-
50	229371		Gasket-lens		Appelez-nous	-
51	87883		Holder-oven Lamp		Appelez-nous	-
52	DA96-01243C		Oven Lamp Bulb   (Replaces: 111257)				$ 144.00
53	304835		Cover		Appelez-nous	-
55	321539		Retainer-thermostat Bulb		Appelez-nous	-
56	331578		Oven Body		Appelez-nous	-
57	316951		Insulation (rt. Or Lt.)		Appelez-nous	-
58	308860		Insulation-oven Top & Sides		Appelez-nous	-
59	326361		208 Volt (optional)		Appelez-nous	-
59	326360		240 Volt		Appelez-nous	-
60	324808		Support-broiler Element (2 Req)		Appelez-nous	-
61	326297		Broiler Pan Grid		Appelez-nous	-
62	331592		Broiler Pan		Appelez-nous	-
63	326069		Oven Rack (2 Req)		Appelez-nous	-
64	229372		Retainer-oven Light Lens		Appelez-nous	-
65	331512		Extension Side Trim		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
