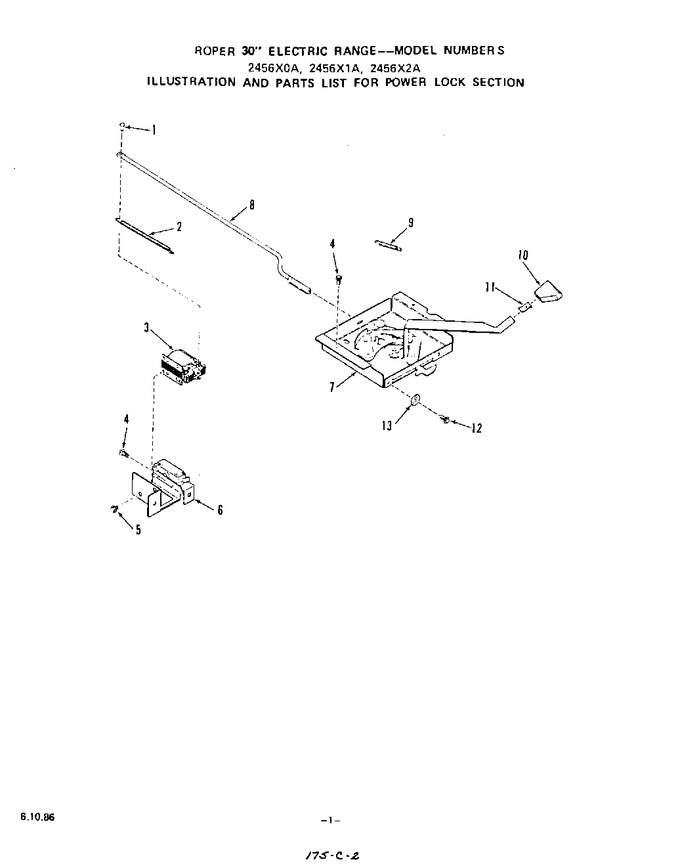

02 - Power Lock


03 - Main Top


04 - Lit/optional Porcelain Pan And Chro


05 - Body


06 - Oven Door


07 - Wire Harness , Rear Main Top Fille


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	326412		Stud		Appelez-nous	-
2	326413		Spring-solenoid		Appelez-nous	-
3	327003		Solenoid Only		Appelez-nous	-
4	327320		Screw 10-16x7/16``		Appelez-nous	-
5	319433		Mounting Screw		Appelez-nous	-
6	327034		Bracket W/switch		Appelez-nous	-
7	331070		Oven Door Lock Assm. (inc. Key 9)		Appelez-nous	-
8	308829		Rod-oven Door Lock		Appelez-nous	-
9	299599		Spring-lock Handle		Appelez-nous	-
10	328475		Knob-oven Door Lock Handle		Appelez-nous	-
11	328474		Clip-knob		Appelez-nous	-
12	327320		Screw 10-16x7/16``		Appelez-nous	-
13	21067		Washer		Appelez-nous	-
