Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2170998		Refrigerator Door (white)		Appelez-nous	-
1	2170999		Refrigerator Door (almond (includes No.6))		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2156065)			Immediately	$ 85.16
3	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
4	1121334		Shelf Bin (2)		Appelez-nous	-
5	1119363		Insert, Handle (almond)		Appelez-nous	-
5	1119361		Insert, Handle (white)		Appelez-nous	-
6	2159075		Door Gasket, Magnetic (service)   (Replaces: 2159071)			Immediately	$ 317.14
7	1118417		Handle, Center		Appelez-nous	-
8	1119359		End Cap, Center Handle		Appelez-nous	-
9	935075		Shim		Appelez-nous	-
10	1119375		Insert, Handle (almond)		Appelez-nous	-
10	1119373		Insert, Handle (white)		Appelez-nous	-
11	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 27.36
12	WP999367		Screw   (Replaces: 489367)				$ 7.86
13	2155334		Bracket, Door Stop		Appelez-nous	-
14	2151653		Hole Plug		Appelez-nous	-
15	1119360		Retainer, Insert (bottom)		Appelez-nous	-
16	1119372		Retainer, Insert		Appelez-nous	-
17	2156220		End Cap (2)		Appelez-nous	-
18	489075		Screw		Appelez-nous	-
19	489022		Screw (4)		Appelez-nous	-
20	2152336		Divider, Bin		Appelez-nous	-
21	1121335		Shelf Bin		Appelez-nous	-
22	4210344		Trim Kit		Appelez-nous	-
22	WP2177962K		Trivet, Shelf   (Replaces: 2175804)				$ 81.09
22	4210352		Trimless Black Decor Panel		Appelez-nous	-
22	4210378		Black Handle Insert		Appelez-nous	-
22	4210446		Woodgrain Handle Insert		Appelez-nous	-

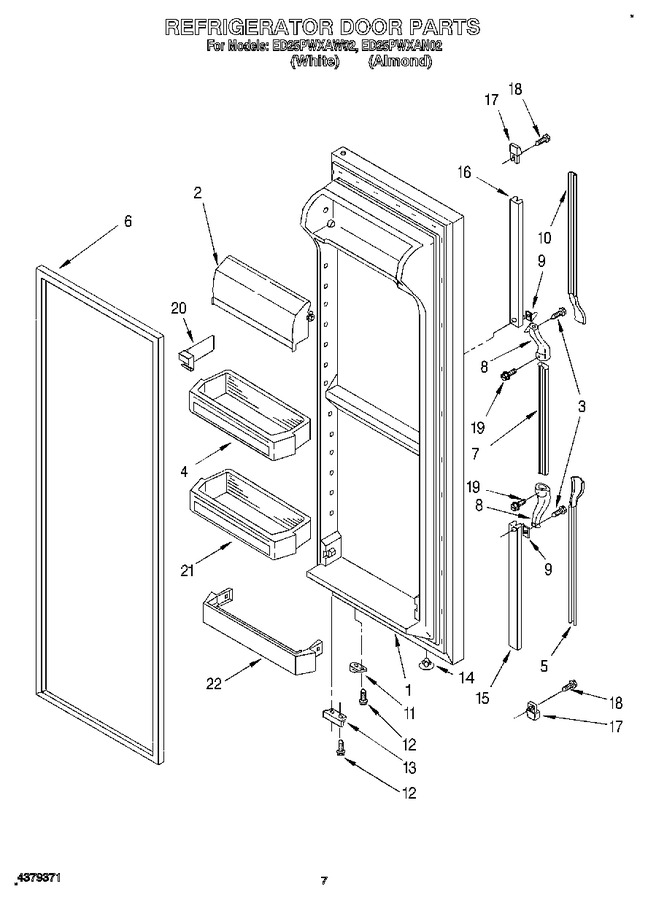

    View Diagram in Separate Window       Print Part List
