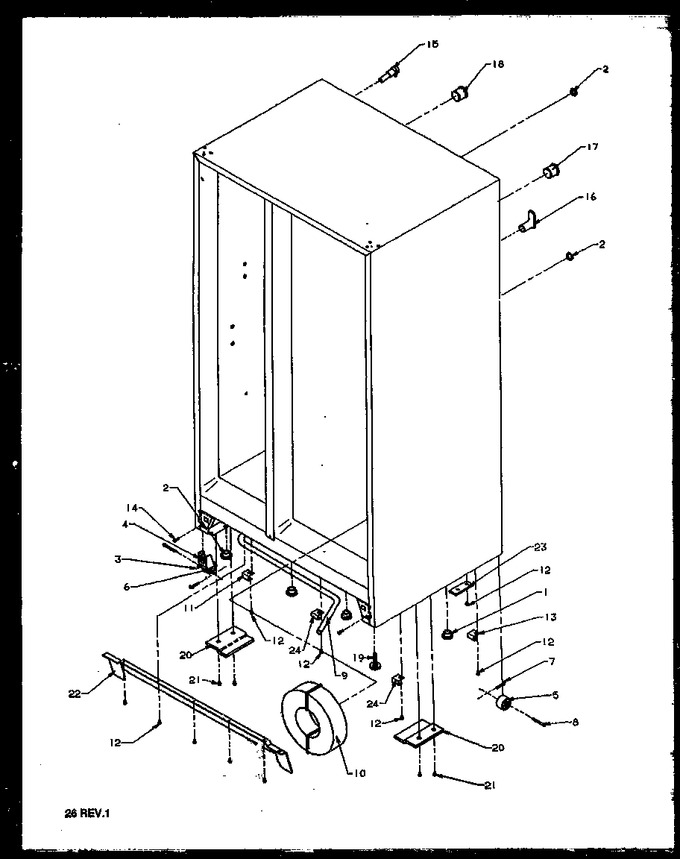

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3076901		Plug-button				$ 5.70
2	A3080001		Plug, Button (blk)		Appelez-nous	-
3	C8742401		Assy, Roller Bracket		Appelez-nous	-
4	M0286708		Nut, Speed				$ 45.57
5	M0520102		Roller		Appelez-nous	-
6	M1205302		Rivet				$ 5.85
7	M1200004		Cotter Pin K		Appelez-nous	-
8	M1200202		Pin K		Appelez-nous	-
9	10505101		Tube, Drain		Appelez-nous	-
10	D7787805		Tank, Coil Water		Appelez-nous	-
11	M0102303		Clamp		Appelez-nous	-
12	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 7.86
13	M0585206		Clip, Wire		Appelez-nous	-
14	M0204339		Screw Bolt K		Appelez-nous	-
15	B8318803		Fill Tube Assy		Appelez-nous	-
16	C8971903		Tunnel, Heat Exchanger		Appelez-nous	-
17	10703701		Tunnel, Wire		Appelez-nous	-
20	10508001		Support, Mach Comp.		Appelez-nous	-
21	WP3400094		Screw   (Replaces: M0253942)				$ 7.93
22	10508102		Baffle, Air		Appelez-nous	-
23	10505002		Clip-h V Box		Appelez-nous	-
24	WP488366		Clamp Tube   (Replaces: M0102330)				$ 11.18
NI	A4554806		Snap Bushing		Appelez-nous	-
NI	10527501		Clip, Tube		Appelez-nous	-
NI	C8956101		Assy, Roller Bracket		Appelez-nous	-
