01 - Front Cover
02 - Main Top
03 - Oven Body
04 - Door Lock
05 - Oven Door
06 - Electric Grill Module Kit
07 - Griddle Kit
SELECT A DIAGRAM
New Model Search:

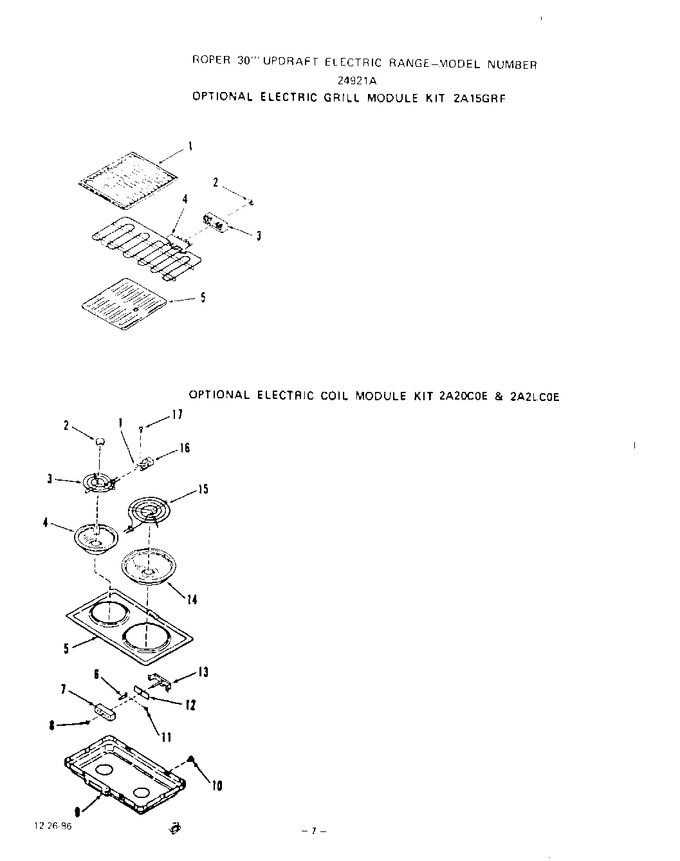

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 329027 | Grate-grill (2 Req) |
|
- | |||||
| 2 | 330332 | Clip-push On |
|
- | |||||
| 3 | 330310 | Xterminal Block |
|
- | |||||
| 4 | 333177 | 240 Volt |
|
- | |||||
| 4 | 333178 | 208 Volt (optional) |
|
- | |||||
| 5 | 332382 | Reflector-grill Support (2 Req) |
|
- | |||||
| A1 | 318872 | Bracket-terminal Block (2 Req) |
|
- | |||||
| A10 | 232183 | Screw 8-32x3/8`` |
|
- | |||||
| A11 | 78565 | Screw 8-32x3/16`` |
|
- | |||||
| A12 | 310705 | Insulator |
|
- | |||||
| A13 | 329112 | Bracket-terminal Block |
|
- | |||||
| A14 | WPW10196405 | 8`` Burner Bowl (Replaces: 304969) |
|
Immediately | $ 15.56 | ||||
| A15 | PS26-4BK | 8`` Surface Element (Replaces: 325506) |
|
Immediately | $ 40.46 | ||||
| A16 | 330031 | Xterminal Block W/wire Leads (2 Req) (Replaces: 318960) |
|
Immediately | $ 17.93 | ||||
| A17 | 299632 | Screw 7-32x5/16`` |
|
- | |||||
| A2 | 318586 | Medallion (2 Req) |
|
- | |||||
| A3 | PS15-4BK | 6`` Surface Element (Replaces: 325510) |
|
Immediately | $ 35.96 | ||||
| A4 | WPW10196406 | 6`` Burner Bowl (Replaces: 296481) |
|
Immediately | $ 12.05 | ||||
| A5 | 330955 | Almond |
|
- | |||||
| A5 | 329211 | Chrome |
|
- | |||||
| A6 | 310709 | Xterminal Pin (4 Req) |
|
- | |||||
| A7 | 329024 | Xterminal Block |
|
- | |||||
| A8 | 69831 | Speed Nut |
|
$ 19.01 | |||||
| A9 | 331609 | Pan-module |
|
- |
